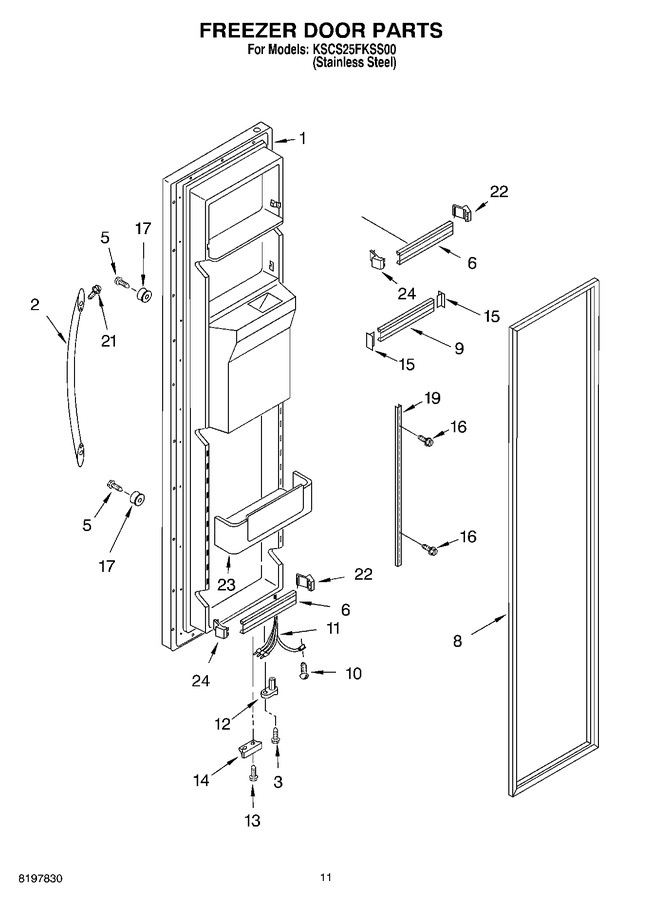

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2214484S		Freezer Door (includes Item 8 And Dispenser Front Parts) (stainless Steel)		Appelez-nous	-
2	2188635S		Handle (stainless Steel)		Appelez-nous	-
3	WP3400012		Screw   (Replaces: 3400012)				$ 7.04
5	WP488163		Screw   (Replaces: 488208)				$ 6.79
6	2199990		Trim, Door Shelf		Appelez-nous	-
8	2221309		Door Gasket, Magnetic (black)		Appelez-nous	-
9	2199991		Trim, Door Shelf		Appelez-nous	-
10	WP489128		Screw   (Replaces: 488500)				$ 9.79
11	2203091		Wiring Harness		Appelez-nous	-
12	WP2182179		Door Closer, Upper Cam   (Replaces: 2182179)			Immediately	$ 5.75
13	WP489483		Screw   (Replaces: 489420)				$ 9.78
14	2214451		Bracket, Door Stop (black)		Appelez-nous	-
15	WP2156006		Plug-trim   (Replaces: 2156006)			Immediately	$ 10.96
16	WPW10141645		Screw   (Replaces: 8281210)				$ 6.90
17	2203690		Stud, Handle		Appelez-nous	-
19	2208147		Ladder, Shelf Assembly (2)		Appelez-nous	-
21	98654		Screw		Appelez-nous	-
22	WP2195916K		Endcap   (Replaces: 2195916)			Immediately	$ 11.30
23	2199992		Bin, Door (2)		Appelez-nous	-
24	2195917		Endcap		Appelez-nous	-
