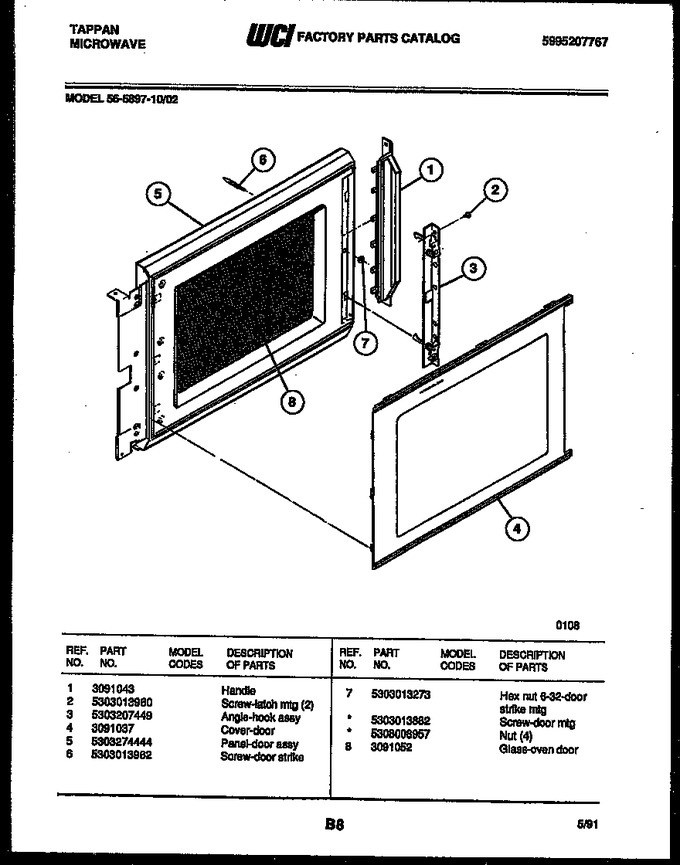

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3091043 | Handle |
|
- | |||||
| 2 | 5303013960 | Screw-latch Mtg (2) |
|
- | |||||
| 3 | 5303207449 | Angle Hook Assy |
|
- | |||||
| 4 | 3091037 | Cover-door |
|
- | |||||
| 5 | 5303274444 | Panel-door Assy |
|
- | |||||
| 6 | 5303013962 | Screw-door Strike |
|
- | |||||
| 7 | 5303013273 | Hex Nut 6-32-door Strike Mtg |
|
- | |||||
| 8 | 3091052 | Glass-oven Door |
|
- | |||||
| 7A | 5303013882 | Screw-door Mtg (non-illustrated) |
|
- | |||||
| 7B | 5308008957 | Nut (4) (non-illustrated) |
|
- |
