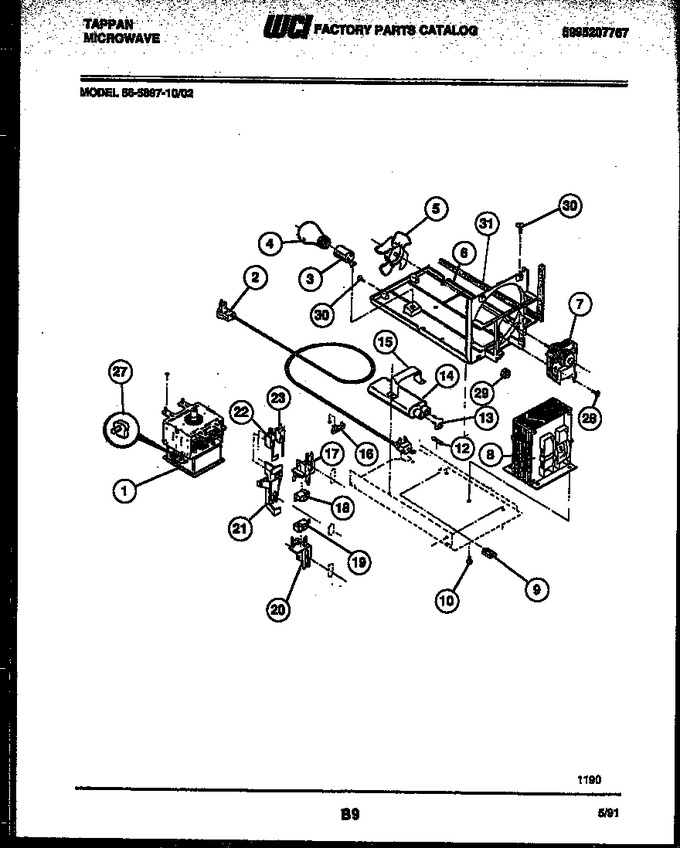

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303206781 | Magnetron |
|
- | |||||
| 2 | 5308037629 | Cord-power |
|
- | |||||
| 3 | 5303091197 | Socket-oven Light |
|
- | |||||
| 4 | 40A15 | Bulb, Oven Light (Replaces: 5303013071) |
|
Immediately | $ 1.98 | ||||
| 5 | 5303203192 | Fan-blade |
|
- | |||||
| 6 | 5303012194 | Duct-air (fan) |
|
- | |||||
| 7 | 5308037636 | Motor-fan |
|
- | |||||
| 8 | 5308037626 | Transformer |
|
- | |||||
| 9 | 5308037677 | Clip-wires (4) |
|
- | |||||
| 10 | 5303013944 | Screw (4) |
|
- | |||||
| 12 | 5303011670 | Fuse-20 Amp |
|
- | |||||
| 13 | 5303091303 | Diode |
|
- | |||||
| 14 | 5308037624 | Capacitor |
|
- | |||||
| 15 | 5303013771 | Retainer-capacitor |
|
- | |||||
| 16 | 5303091280 | Fuse-thermal Cutout-blue 98 Deg |
|
- | |||||
| 17 | 5308014437 | Bracket-switch Upper |
|
- | |||||
| 18 | 5303203636 | Switch, Interlock |
|
- | |||||
| 19 | 5308037692 | Switch-interlock Lwr |
|
- | |||||
| 20 | 5303011556 | Bracket-switch (lower) |
|
- | |||||
| 21 | 5303203197 | Bracket-switch Monitor |
|
- | |||||
| 22 | 5308014448 | Switch-logic |
|
- | |||||
| 23 | 5308014447 | Switch-monitor |
|
- | |||||
| 27 | 08037647 | Insulator - Mag Term |
|
- | |||||
| 28 | 5308014502 | Screw-fan Mtg (2) |
|
- | |||||
| 29 | 5303013273 | Nut-motor (2) |
|
- | |||||
| 30 | 5303091100 | Screw |
|
- | |||||
| 31 | 5303017864 | Seal-foam Cut To Size |
|
- | |||||
| 23A | 3091044 | Harness-main (non-illustrated) |
|
- | |||||
| 23B | 5303091481 | Harness-bake Element (non-illustrated) |
|
- | |||||
| 30A | 5308010077 | Clip-purse Lock (non-illustrated) |
|
- |
