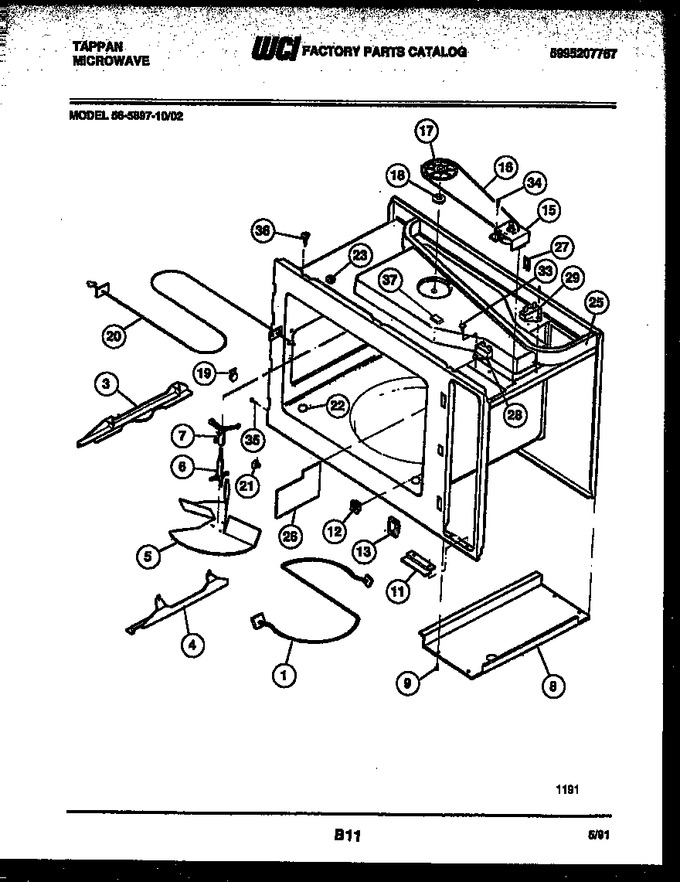

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303091040 | Element-bake |
|
- | |||||
| 3 | 5303091035 | Channel-stirrer Glass Lh |
|
- | |||||
| 4 | 3091036 | Channel-stirrer Glass Rh |
|
- | |||||
| 5 | 5308037708 | Fan Stirrer |
|
- | |||||
| 6 | 5303202875 | Support-stirrer |
|
- | |||||
| 7 | 5303011826 | Collar-stirrer |
|
- | |||||
| 8 | 5303210624 | Channel-base-rh |
|
- | |||||
| 9 | 5303091100 | Screw (4) |
|
- | |||||
| 11 | 5303011555 | Bracket-control Panel Support |
|
- | |||||
| 12 | 5303015370 | Bezel-switch (1) |
|
- | |||||
| 13 | 5303015369 | Bezel-latch (2) |
|
- | |||||
| 15 | 5303091482 | Motor Stirrer W/ Belt |
|
- | |||||
| 16 | 5303011495 | Belt |
|
$ 23.31 | |||||
| 17 | 3091055 | Pulley |
|
- | |||||
| 18 | 5303014620 | Washer |
|
- | |||||
| 19 | 3091034 | Button-rack Support (8) |
|
- | |||||
| 20 | 5303091039 | Element-broil |
|
- | |||||
| 21 | 5303203687 | Plug-button Probe |
|
- | |||||
| 22 | 5303091053 | Plug-button Tray (2) |
|
- | |||||
| 23 | 5303131215 | Fastener-twist Nut (4) |
|
- | |||||
| 25 | 5308037640 | Duct Air Foam |
|
- | |||||
| 26 | 3091057 | Shield-oven Light |
|
- | |||||
| 27 | 5308037677 | Clip-wires (4) |
|
- | |||||
| 28 | 5303203651 | Fuse-thermal Cutout-white 152 Deg |
|
$ 77.86 | |||||
| 29 | 5303091280 | Fuse-thermal Cutout-blue 98 Deg |
|
- | |||||
| 33 | 5303017863 | Screw-fuse (2) |
|
- | |||||
| 34 | 5303091100 | Screw-motor (2) |
|
- | |||||
| 35 | 5303051818 | Screw (4) |
|
- | |||||
| 36 | 5303091100 | Screw |
|
- | |||||
| 37 | 5308037724 | Spacer |
|
- | |||||
| *51299 | 191T175F97 | Diagram-wiring (not For Purchase) |
|
- | |||||
| 13A | 5303015662 | Rack-oven (non-illustrated) |
|
- | |||||
| 1A | 5303012681 | Cover-stirrer-glass (non-illustrated) |
|
- | |||||
| 23A | 5303091060 | Support-rack (4) (non-illustrated) |
|
- | |||||
| 29A | 3091062 | Glass-trivet (non-illustrated) |
|
- | |||||
| 29B | 5303131356 | Insert-broiler Pan (non-illustrated) |
|
- | |||||
| 29C | 5303013568 | Broiler Pan (non-illustrated) |
|
- |
