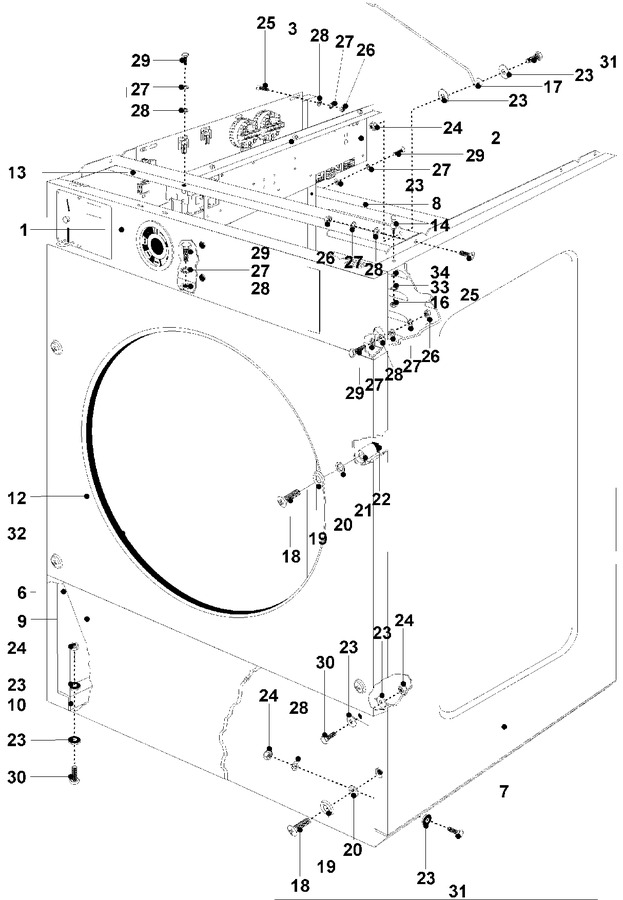

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	NLA		Panel, Control (w/mkii)	10	Appelez-nous	-
002	NLA		Holder, Condenser	10	Appelez-nous	-
003	NLA		Holder, Elec. Component Box	10	Appelez-nous	-
006	23003292		Panel, Side (lt)	10	Appelez-nous	-
007	23003294		Panel, Side (rt)	10			$ 1,054.94
008	23003296		Panel, Rear	10	Appelez-nous	-
009	23001436		Panel, Access (lwr)	10	Appelez-nous	-
010	23003299		Support, Side Panel	10	Appelez-nous	-
012	23003362		Panel, Front	10	Appelez-nous	-
013	NLA		Holder, Components	10	Appelez-nous	-
014	23001332		Pin, Srv	10	Appelez-nous	-
016	W10244602		Nut (m5)   (Replaces: 23002466)	10			$ 11.90
017	23001330		Support Rod, Top Panel	10	Appelez-nous	-
018	23001446		Bolt M5x50 Stns Stl   (Replaces: 23003772)	10	Appelez-nous	-
019	23001204		Washer, Finishing (dia. 5)	10			$ 278.89
020	23001447		Washer, Fiber (12 X 6 X 2)	10	Appelez-nous	-
021	23002860		Tube, Distance	10	Appelez-nous	-
022	23001448		Nut, Rapid (m5)	10	Appelez-nous	-
023	23002469		Washer	10	Appelez-nous	-
024	23002471		Nut	10	Appelez-nous	-
025	NLA		Bolt (m6x16)	10	Appelez-nous	-
026	23003773		Nut M6	10	Appelez-nous	-
027	20007283		Washer, Spring Lock (6)   (Replaces: 23002440)	10			$ 504.91
028	23003774		Washer 12	10	Appelez-nous	-
029	23004114		Screw (m6 X16)   (Replaces: 23002461)	10	Appelez-nous	-
030	23002462		Screw (m6 X 20) Lu	10			$ 5.14
031	23002861		Screw (m6x25) Lu	10	Appelez-nous	-
032	23002473		Rubber, Protective	10			$ 4.52
033	23004485		Washer, Lock   (Replaces: 23002465)	10	Appelez-nous	-
034	23002862		Washer (5,3)	10	Appelez-nous	-
