SELECT A DIAGRAM

01 - Base Frame


02 - Cabinet


03 - Timer And Coin Vault


04 - Top Cover And Soap Box


05 - Door Lock


06 - Drain And Hose Assy


07 - Water Valve And Rear Panel


08 - Motor And Basket Pulley


09 - Main Control


10 - Basket And Outer Shell


11 - Door


12 - Trunnion And Bearing

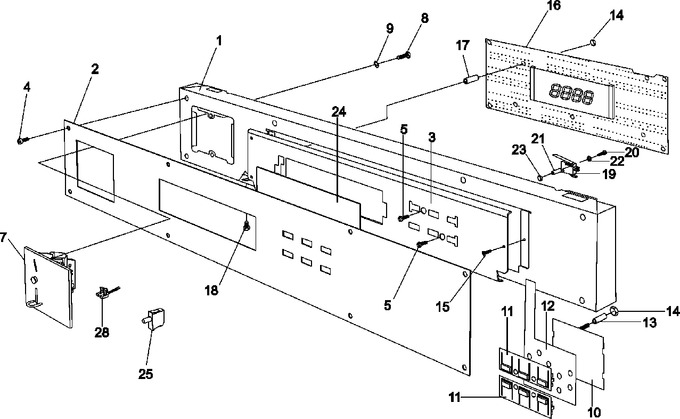

13 - Control Panel


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	23003636		Panel, Control (18/25)	10	Appelez-nous	-
001	23003723		Control Panel	18	Appelez-nous	-
002	23003640		Facia (25)	10	Appelez-nous	-
002	23003722		Facia, Control Panel Mfr25	18	Appelez-nous	-
003	23003809		Program, Holder	10	Appelez-nous	-
004	WPW10131119		Screw   (Replaces: 23003810)	10			$ 6.26
005	23001372		Screw (m4 X 8 Stnls Steel)	10	Appelez-nous	-
007	23003644		Coin Drop	10	Appelez-nous	-
008	23004485		Washer, Lock   (Replaces: 23002465)	10	Appelez-nous	-
009	23003797		Bolt	10	Appelez-nous	-
010	23003645		Holder	10	Appelez-nous	-
011	23003646		Buttons, Row Of 3	10	Appelez-nous	-
012	23003647		Switch, Membrane	10			$ 65.31
013	23003648		Tube	10	Appelez-nous	-
014	M0282005		Locknut, Washered   (Replaces: 23003649)	10			$ 7.07
015	8173901		Screw   (Replaces: 23003811)	10	Appelez-nous	-
016	23003650		Accu Trac Control Board	10	Appelez-nous	-
017	23003651		Tube	10	Appelez-nous	-
019	23001145		Microswitch, Long Lever	10	Appelez-nous	-
020	23003652		Screw, Switch	10	Appelez-nous	-
021	23003653		Tube	10	Appelez-nous	-
022	23003654		Washer (m3)	10	Appelez-nous	-
023	23002958		Nut M3	10	Appelez-nous	-
024	WPW10131114		Cover, Display Lu   (Replaces: 23003655)	10			$ 42.79
025	23003656		Switch, Coin Box	10	Appelez-nous	-
026	23003657		Sensor, Optic	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
