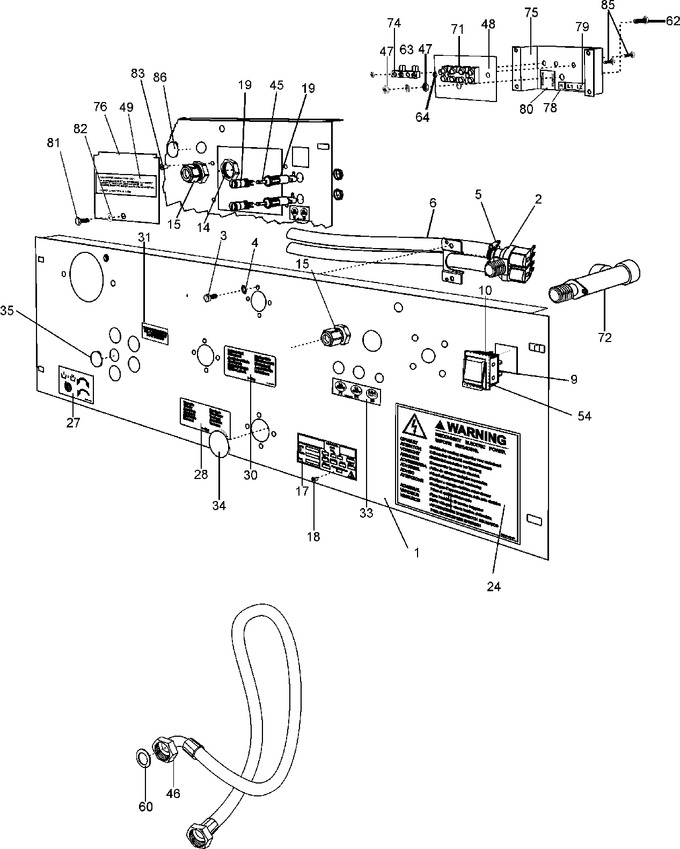

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	23003658		Bridge, Rear	10	Appelez-nous	-
002	23001455		Valve, Two Way (220v 50/60hz)	10	Appelez-nous	-
003	23002423		Screw (m4 X 10)	10	Appelez-nous	-
004	23002111		Washer (4)	10		Immediately	$ 221.87
005	WP596669		Clamp, Hose   (Replaces: 23001506)	10		Immediately	$ 7.56
006	23001507		Waterhose (green)	10	Appelez-nous	-
009	23001529		Button (rapid Advance)	10	Appelez-nous	-
010	23001452		Plug (wht)	10	Appelez-nous	-
014	23002197		Nut	10	Appelez-nous	-
015	23002196		Swivel, Cable	10	Appelez-nous	-
018	23002187		Bolt, Firing (3.2x7.9)	10	Appelez-nous	-
019	23001462		Holder, Fuse	10	Appelez-nous	-
024	23001465		Sticker, Electricity Warning	10	Appelez-nous	-
027	23001468		Sticker, Spin Direction	10			$ 870.39
028	23001469		Sticker, Hot Water	10			$ 1,212.53
030	NLA		Sticker, Cold Hard Water	10	Appelez-nous	-
031	23001509		Sticker, Pipe Thread	10	Appelez-nous	-
033	NLA		Sticker (1a)	10	Appelez-nous	-
035	23001476		Plug, Water Inlet	10			$ 705.49
045	23001463		Fuse (2a)	10	Appelez-nous	-
045	WP23001508		Fuse (1a)   (Replaces: 23001508)	10			$ 48.21
046	23001523		Hose, Connection	10	Appelez-nous	-
047	23002651		Nut (m6)	10	Appelez-nous	-
048	23003800		Insulation	10	Appelez-nous	-
049	NLA		Label, Terminal	10	Appelez-nous	-
054	23001532		Cover, Button (plastic)	10	Appelez-nous	-
060	23002921		Washer, Fill Hose	10	Appelez-nous	-
062	23002806		Screw (m6 X 25)	10	Appelez-nous	-
063	23002425		Washer, Lock	10			$ 473.30
064	23003666		Nut (m4)	10	Appelez-nous	-
071	23002923		Board, Terminal	10	Appelez-nous	-
072	23002924		T-part (3/4)	10	Appelez-nous	-
074	23002154		Board, Terminal (6 Poles)	10	Appelez-nous	-
075	23003803		Box, Terminal	10	Appelez-nous	-
076	23003661		Terminal Cover Lu	10	Appelez-nous	-
078	NLA		Label, Terminal	10	Appelez-nous	-
079	23003801		Phase Sticker	10	Appelez-nous	-
080	23003802		Supply Label	10	Appelez-nous	-
081	23002422		Screw (m6 X 12)	10	Appelez-nous	-
082	23002424		Washer	10	Appelez-nous	-
083	23001033		Rivets, Blind (dia. 3.2 X 8)lu	10	Appelez-nous	-
085	NLA		Screw (m4x20)	10	Appelez-nous	-
086	23003785		Plug	10	Appelez-nous	-
