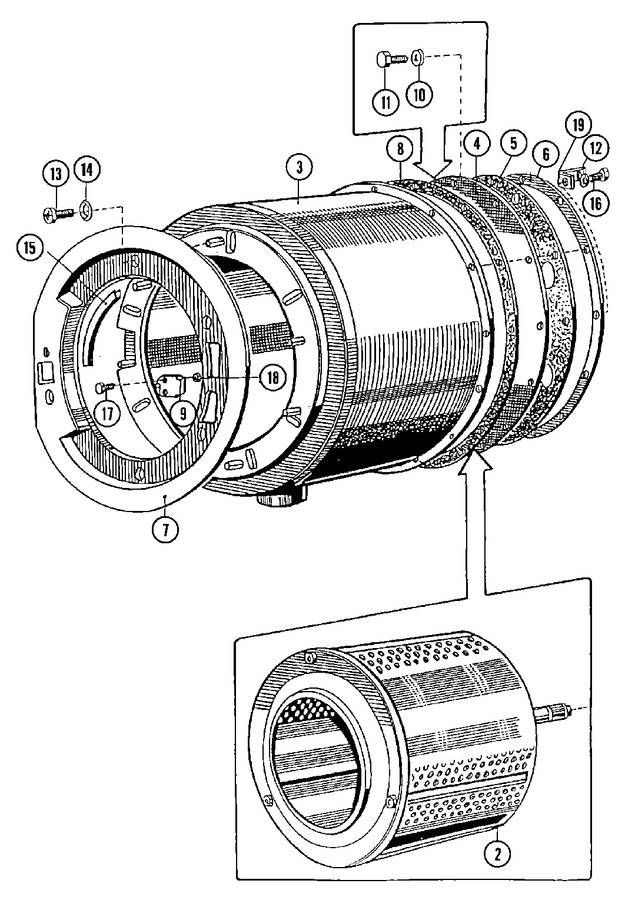

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	NLA		Tub (complete)	10	Appelez-nous	-
002	23001189		Drum & Shaft	10			$ 1,272.14
002	23001190		Drum & Shaft	10	Appelez-nous	-
003	23001191		Shell, Outer	10			$ 1,415.75
003	23001192		Shell, Outer	10			$ 1,307.93
004	23002178		Plate, Base	10	Appelez-nous	-
004	NLA		Plate, Base	10	Appelez-nous	-
005	23001195		Backplate (iron)	10			$ 545.35
005	23001196		Backplate (iron)	10			$ 648.52
005	23003981		Bearing Housing Stud 14mm	10	Appelez-nous	-
006	23001197		Ring, Clamp (24 Holes)	10	Appelez-nous	-
007	23001198		Shield	10	Appelez-nous	-
008	23001199		Gasket, Rear Shell (24 Holes)	10	Appelez-nous	-
009	23001200		Hinge, Mirco Switch	10	Appelez-nous	-
010	23001201		Washer (dia. 22x11x1 Brass)	10			$ 303.26
011	23002940		Bolt (m10x35 Stnls Steel)   (Replaces: 23001202)	10	Appelez-nous	-
012	23001203		Washer (dia. 16 X 8.4 X 1.6)	10	Appelez-nous	-
013	8173901		Screw (m4 X 8 Stnls Steel)   (Replaces: 23001177)	10	Appelez-nous	-
014	23001204		Washer, Finishing (dia. 5)	10			$ 278.89
015	23001088		Trim, Rubber	10	Appelez-nous	-
016	23001205		Bolt (m8 X 45)	10			$ 442.20
017	W10295997		Screw (m4 X 16 Ck)   (Replaces: 23001089)	10			$ 6.27
018	23001055		Nut (m4)	10	Appelez-nous	-
019	23001206		Bracket, Motor Harness	10	Appelez-nous	-
020	23001592		Adaptor	10	Appelez-nous	-
021	23002179		Washer	10	Appelez-nous	-
022	23001265		Washer (8)	10	Appelez-nous	-
023	23001306		Locking Nut, Self	10	Appelez-nous	-
