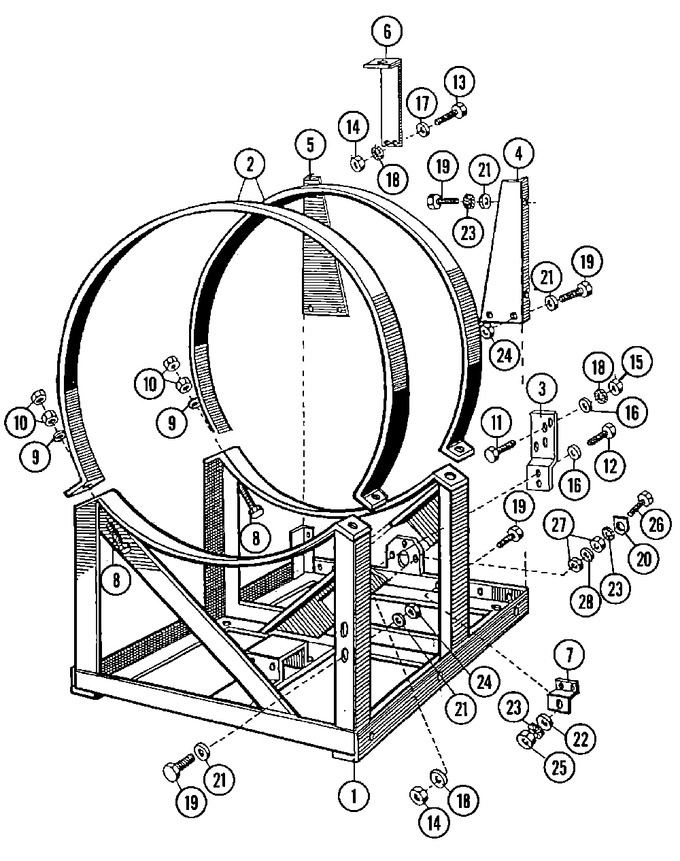

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	23001296		Frame	10	Appelez-nous	-
001	NLA		Frame	10	Appelez-nous	-
002	23001297		Clamp, Tub	10	Appelez-nous	-
003	23001298		Brace, Tub Support	10	Appelez-nous	-
004	23001299		Panel, Support Bracket (rt)	10	Appelez-nous	-
005	23001300		Panel, Support Bracket (lt)	10	Appelez-nous	-
006	23001302		Bracket	10	Appelez-nous	-
007	23001294		Bolt (m12 X 70)	10	Appelez-nous	-
008	23001292		Washer (13)	10	Appelez-nous	-
009	23001303		Nut (m12)	10	Appelez-nous	-
010	23001205		Bolt (m8 X 45)	10			$ 442.20
011	23001304		Bolt (m8 X 35)	10	Appelez-nous	-
012	23001266		Nut M8	10	Appelez-nous	-
013	23001306		Locking Nut, Self	10	Appelez-nous	-
014	23001263		Washer (8.4)	10	Appelez-nous	-
015	23001265		Washer (8)	10	Appelez-nous	-
016	23001307		Bolt (m6 X 20)	10	Appelez-nous	-
017	23001308		Hardware, Grounding	10	Appelez-nous	-
018	23001309		Washer (6.4) Lu	10	Appelez-nous	-
019	23001159		Washer (dia. 14x8.6x1 Stnls)lu	10	Appelez-nous	-
020	23001028		Lockwasher (external Teeth M6)	10	Appelez-nous	-
021	23001310		Nut, Self Locking (m6)	10	Appelez-nous	-
022	23001034		Nut (m6)	10	Appelez-nous	-
023	23001311		Bolt (m6 X 25)	10	Appelez-nous	-
024	23001312		Nut M6	10	Appelez-nous	-
025	23001313		Washer (6.4)	10	Appelez-nous	-
