SELECT A DIAGRAM

01 - Soap Box & Top Cover Assembly


02 - Control Panel


03 - Timer & Coin Assembly


04 - Water Valve & Rear Panel


05 - Door Lock Assembly


06 - Door


07 - Basket & Outer Shell Assembly


08 - Bearings & Trunnion Assembly


09 - Drain & Hose Assembly


10 - Motor & Basket Pulley


11 - Base Frame


12 - Cabinet


13 - Base Frame (series 11)


14 - Cabinet (series 11)


15 - Control Panel (series 11)


16 - Timer & Coin Assembly (series 11)


17 - Soap Box & Top Cover Assembly(series 11)


18 - Door Lock Assembly (series 11)


19 - Drain & Hose Assembly (series 11)


20 - Water Valve & Rear Panel (series 11)


21 - Basket & Outer Shell Assembly (series11)


22 - Door (series 11)


23 - Bearings & Trunnion (series 11)


24 - Motor & Basket Pulley (series 11)


25 - Electrical Components (series 11)

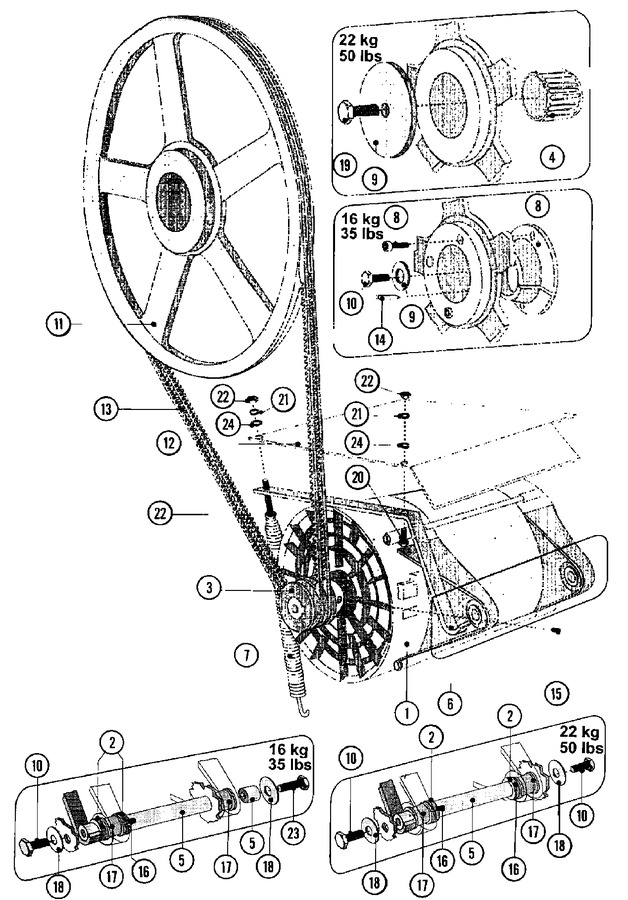

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	23001269		Motor (single Phase-240/208v)	11	Appelez-nous	-
001	23001270		Motor (three Phase-240v/208v)	11	Appelez-nous	-
001	23001271		Motor (three Phase 240/208v)	11	Appelez-nous	-
002	23002925		Shaft, Sliding Ring Motor	11	Appelez-nous	-
003	23001273		V-pulley (dia. 53 X Pz 60hz)	11			$ 88.12
004	23001274		Ring, Tolerance	11	Appelez-nous	-
005	23002926		Shaft, Motor	11	Appelez-nous	-
005	23002927		Shaft, Extension Motor (mono)	11	Appelez-nous	-
005	23002969		Shaft, Motor	11	Appelez-nous	-
006	23001278		Belt Tensioner (single Phase)	11	Appelez-nous	-
007	23001279		Belt, Tension Spring	11	Appelez-nous	-
008	23001280		Bushing, Tapered (w/key Slot)	11	Appelez-nous	-
009	23001281		Washer (dia. 90 X 10)	11	Appelez-nous	-
009	23001282		Washer (dia. 37 X 13 X 3)	11			$ 15.36
010	23002661		Screw (m12x35)	11	Appelez-nous	-
011	23001284		Basket Pulley (dia. 450)	11	Appelez-nous	-
011	23001285		Basket Pulley (dia. 450)	11	Appelez-nous	-
012	23002928		Motor, Protection Shield	11	Appelez-nous	-
013	23001287		V-belt (xpz X 1950)	11	Appelez-nous	-
014	23001288		Basket Pulley Key (10 X 8x 60)	11	Appelez-nous	-
015	23002929		Screw, Socket Set (m8x10)	11	Appelez-nous	-
016	23002930		Screw, Socket Set (m6x6)	11	Appelez-nous	-
017	23001291		Bushing, Rubber Motor Mount	11	Appelez-nous	-
018	23002657		Washer (13)	11	Appelez-nous	-
019	23002931		Screw (m14x50)	11	Appelez-nous	-
020	23002475		Bolt (m8x20)	11			$ 13.66
021	23002932		Lockwasher, Spring	11	Appelez-nous	-
022	23002399		Nut(m4)	11	Appelez-nous	-
023	23002846		Screw (m12 X 70)	11	Appelez-nous	-
024	23002653		Washer (8/6)	11	Appelez-nous	-
