SELECT A DIAGRAM

01 - Base Frame


02 - Cabinet


03 - Soap Box & Top Cover Assembly


04 - Door Lock Assembly


05 - Drain & Hose Assembly

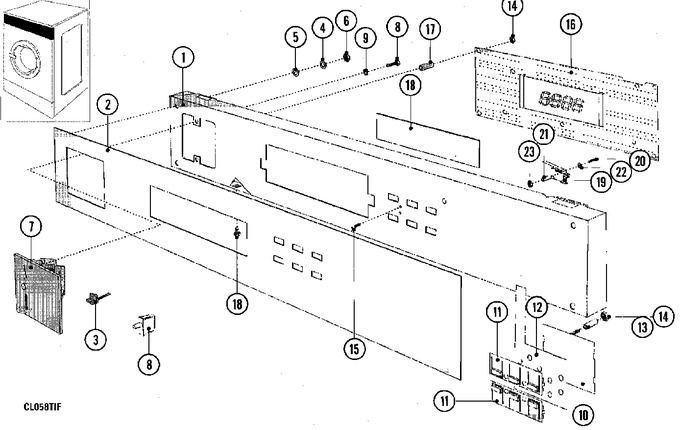

06 - Control Panel


07 - Door


08 - Basket & Outer Shell Assembly


09 - Bearings & Trunnion Assembly


10 - Motor & Basket Pulley


11 - Water Valve & Rear Panel


12 - Electrical Components


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	23003637		Panel, Control	10	Appelez-nous	-
001	23003814		Panel, Control	18	Appelez-nous	-
002	23003641		Facia (35)	10	Appelez-nous	-
002	23003724		Facia, Control Panel Mfr35	18	Appelez-nous	-
003	23003657		Sensor, Optic	10	Appelez-nous	-
004	23001545		Washer	10	Appelez-nous	-
005	23002426		Washer, Lock (m4)	10	Appelez-nous	-
006	23003666		Nut (m4)	10	Appelez-nous	-
007	23002884		Vault, Coin (single) Lu	10	Appelez-nous	-
007	23003975		Vault, Coin Mfr35/50	23	Appelez-nous	-
007	23003644		Coin Drop	10	Appelez-nous	-
008	23003656		Switch, Coin Box	10	Appelez-nous	-
009	23004485		Washer, Lock   (Replaces: 23002465)	10	Appelez-nous	-
010	23003645		Holder	10	Appelez-nous	-
011	23003646		Buttons, Row Of 3	10	Appelez-nous	-
012	23003647		Switch, Membrane	10			$ 65.31
013	23003648		Tube	10	Appelez-nous	-
014	M0282005		Locknut, Washered   (Replaces: 23003649)	10			$ 7.07
015	23002617		Screw (m4x8)	10	Appelez-nous	-
016	23003705		Control Board	10	Appelez-nous	-
017	23003651		Tube	10	Appelez-nous	-
018	WPW10131114		Cover, Display Lu   (Replaces: 23003655)	10			$ 42.79
019	23001145		Microswitch, Long Lever	10	Appelez-nous	-
020	23003652		Screw, Switch	10	Appelez-nous	-
021	23003653		Tube	10	Appelez-nous	-
022	23003654		Washer (m3)	10	Appelez-nous	-
023	23002958		Nut M3	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
