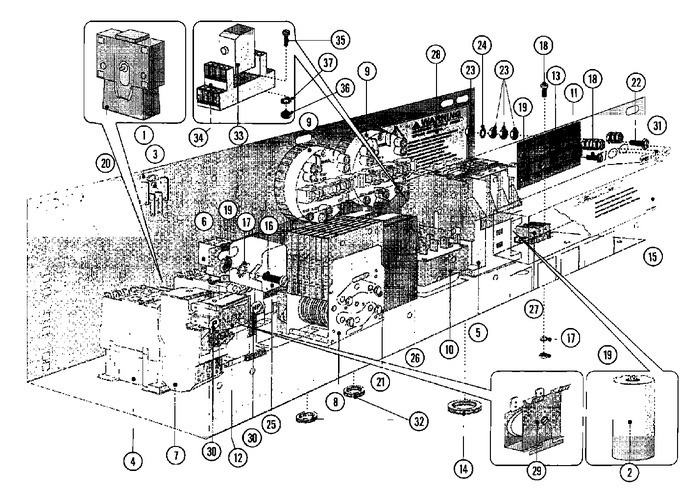

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 001 | 23001094 | Bridge, Rectifier | 10 |
|
- | ||||
| 002 | 23001096 | Capacitor (60mf) | 10 |
|
- | ||||
| 002 | 23001098 | Capacitor (130mf) | 10 |
|
- | ||||
| 003 | 23001099 | Pc Board Socket | 10 |
|
- | ||||
| 004 | 23003750 | Contactor Lc1 Do9 | 21 |
|
- | ||||
| 004 | 23001100 | Contactor (lc1-d0901 M7) | 10 |
|
- | ||||
| 004 | 23001101 | Contactor (lc1-d1201 M7) | 10 |
|
- | ||||
| 004 | 23003751 | Contactor Lc1 D12 | 21 |
|
- | ||||
| 005 | 23003752 | Contactor Lc1 | 21 |
|
- | ||||
| 005 | 23001103 | Contactor (lc1-d3201 M7) | 10 |
|
- | ||||
| 005 | 23001340 | Contactor (lc1-d4011) | 10 |
|
- | ||||
| 005 | 23001102 | Contactor (lc1-d1801 M7) | 10 |
|
Immediately | $ 2,343.16 | |||
| 006 | 23001104 | Auxiliary Contact (1no-1nc) | 10 |
|
- | ||||
| 007 | 23001105 | Relay, Thermal Overload (9-13a | 10 |
|
- | ||||
| 007 | 23001106 | Relay, Thermal Overload (4-6a) | 10 |
|
- | ||||
| 007 | 23001108 | Relay, Thermal Overload (7-10a | 10 |
|
- | ||||
| 007 | 23002101 | Relay, Overload (lr2-d1312) | 10 |
|
- | ||||
| 007 | 23003756 | Overload Relay 4-6a | 21 |
|
- | ||||
| 007 | 23003757 | Overload Relay 5.5-8a | 21 |
|
$ 253.39 | ||||
| 007 | 23003758 | Overload Relay Lr2d | 21 |
|
- | ||||
| 007 | 23003761 | Overload Relay Lr2d | 21 |
|
- | ||||
| 008 | 23001110 | Timer, Reversing (pr1840) | 10 |
|
- | ||||
| 009 | 23001111 | Switch, Water Level | 10 |
|
- | ||||
| 009 | 23001513 | Switch, Water Level | 20 |
|
$ 163.29 | ||||
| 009 | 23002176 | Switch, Water Level | 10 |
|
- | ||||
| 010 | 23002460 | Thermostat (4 Temp) | 10 |
|
- | ||||
| 011 | 23002154 | Board, Terminal (6 Poles) | 10 |
|
- | ||||
| 012 | 23001114 | Rocker Switch, Prewash/no Prew | 10 |
|
- | ||||
| 013 | 23001115 | Insulation Paper | 10 |
|
- | ||||
| 014 | 23001117 | Ring, Rubber (dia. 25) | 10 |
|
- | ||||
| 015 | 23001118 | Sticker, Liquid Soap | 10 |
|
- | ||||
| 016 | 23002423 | Screw (m4 X 10) | 10 |
|
- | ||||
| 017 | 23002111 | Washer (4) | 10 |
|
Immediately | $ 221.87 | |||
| 018 | 23002398 | Screw (m4x16) | 10 |
|
- | ||||
| 019 | 23002399 | Nut(m4) | 10 |
|
- | ||||
| 020 | 23001119 | Mechanical Interlock, Contacto | 10 |
|
- | ||||
| 021 | 23002952 | Screw (m4x4) | 10 |
|
- | ||||
| 022 | 23002806 | Screw (m6 X 25) | 10 |
|
- | ||||
| 023 | 23001515 | Nut (m6) | 10 |
|
- | ||||
| 024 | 23001734 | Washer (m6) | 10 |
|
- | ||||
| 025 | NLA | Member, Rc | 10 |
|
- | ||||
| 026 | 23002348 | Transformer, Control Circuit | 10 |
|
$ 190.25 | ||||
| 027 | 23002959 | Connector | 10 |
|
- | ||||
| 028 | 23001465 | Sticker, Electricity Warning | 10 |
|
- | ||||
| 029 | 23002955 | Buzzer | 10 |
|
- | ||||
| 030 | NLA | Sticker | 10 |
|
- | ||||
| 031 | NLA | Label, Earth | 10 |
|
- | ||||
| 032 | 23001138 | Bushing, Cable Passage | 10 |
|
- | ||||
| 033 | 23002956 | Schrach, Relay | 10 |
|
- | ||||
| 034 | 23002957 | Base, Relay | 10 |
|
- | ||||
| 035 | 23002906 | Screw (m3x25) | 10 |
|
- | ||||
| 036 | 23002958 | Nut M3 | 10 |
|
- | ||||
| 037 | 23002865 | Lock Washer M3 | 10 |
|
- |
