SELECT A DIAGRAM

01 - Base Frame


02 - Cabinet


03 - Soap Box & Top Cover Assembly


04 - Door Lock Assembly


05 - Drain & Hose Assembly


06 - Control Panel


07 - Door


08 - Basket & Outer Shell Assembly

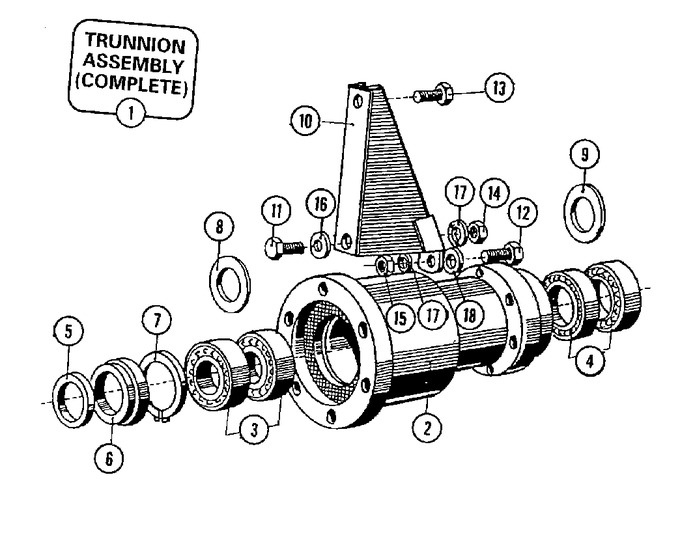

09 - Bearings & Trunnion Assembly


10 - Motor & Basket Pulley


11 - Water Valve & Rear Panel


12 - Electrical Components


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	23001208		Trunnion Assembly	10			$ 123.37
002	23001230		Trunnion (casting Only)	10	Appelez-nous	-
003	23001231		Bearing (6209 2rs C3)	10	Appelez-nous	-
004	23001232		Bearing (rear)	10	Appelez-nous	-
005	23001233		Ring, Seal	10	Appelez-nous	-
006	23001234		Seal, Water	10	Appelez-nous	-
007	23001235		Ring, Internal Snap	10			$ 2,741.81
008	23001236		Spacer Ring (front Bearing)	10	Appelez-nous	-
009	23001237		Spacer Ring (rear Bearing)	10	Appelez-nous	-
010	23001238		Spoke	10	Appelez-nous	-
011	23002940		Bolt (m10x35 Stnls Steel)   (Replaces: 23001202)	10	Appelez-nous	-
012	23003808		Bolt (m10 X 40)   (Replaces: 23001239)	10	Appelez-nous	-
013	23001205		Bolt (m8 X 45)	10			$ 442.20
014	23001661		Nut (m10)   (Replaces: 23001240)	10			$ 15.61
015	23001241		Locking Nut, Self (m10) Lu	10			$ 2,647.47
016	23001201		Washer (dia. 22x11x1 Brass)	10			$ 303.26
017	23001242		Lock Washer, Spring (m10)	10	Appelez-nous	-
018	23001243		Washer (dia. 20 X 10.5 X 2)	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
