SELECT A DIAGRAM

01 - Base Frame

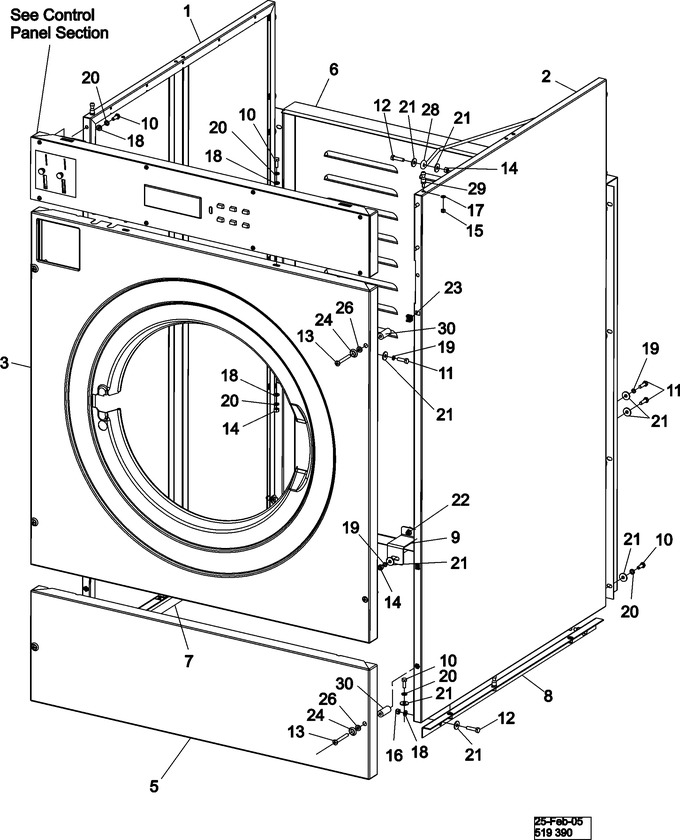

02 - Cabinet (pd)


03 - Top Cover Assembly


04 - Door Lock Assembly


05 - Door


06 - Soap Box, Drain & Hose Assembly


07 - Control Panel (pd)


08 - Coin Vault (pd)


09 - Basket & Outer Shell Assembly


10 - Motor & Basket Pulley


11 - Water Valve & Rear Panel


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	23004213		Panel, Left Side Mfr50	10	Appelez-nous	-
002	23004214		Panel, Right Side Mfr50	10	Appelez-nous	-
003	23004178		Front Panel Comp(pd)	10	Appelez-nous	-
003	23004515		Front Panel,mfr40-50pd	13	Appelez-nous	-
005	23002857		Panel, Service (stainless)	10	Appelez-nous	-
006	23004179		Rear Cover	10	Appelez-nous	-
007	23004215		Left Support Comp Mfr50	10			$ 19.18
008	23004216		Right Support Comp Mfr50	10	Appelez-nous	-
009	23004182		Rear Cover Holder	10	Appelez-nous	-
010	23004114		Screw (m6 X16)   (Replaces: 23002461)	10	Appelez-nous	-
011	23002462		Screw (m6 X 20) Lu	10			$ 5.14
012	23002861		Screw (m6x25) Lu	10	Appelez-nous	-
013	23002456		Screw (m6x50)	10	Appelez-nous	-
014	23003773		Nut M6	10	Appelez-nous	-
015	23003716		Nut M5	10	Appelez-nous	-
016	23002471		Nut	10	Appelez-nous	-
017	23002862		Washer (5,3)	10	Appelez-nous	-
018	23003778		Washer 12	10	Appelez-nous	-
019	20007283		Washer, Spring Lock (6)   (Replaces: 23002440)	10			$ 504.91
020	23002756		Washer	10	Appelez-nous	-
021	23003012		Washer Lu	10	Appelez-nous	-
022	23004092		Nut M6	10	Appelez-nous	-
023	23002455		Nut, Rapid (m6)	10	Appelez-nous	-
024	23002457		Washer	10	Appelez-nous	-
026	23001447		Washer, Fiber (12 X 6 X 2)	10	Appelez-nous	-
028	23001330		Support Rod, Top Panel	10	Appelez-nous	-
029	23004183		Pin,alignment	10	Appelez-nous	-
030	23002860		Tube, Distance	10	Appelez-nous	-
