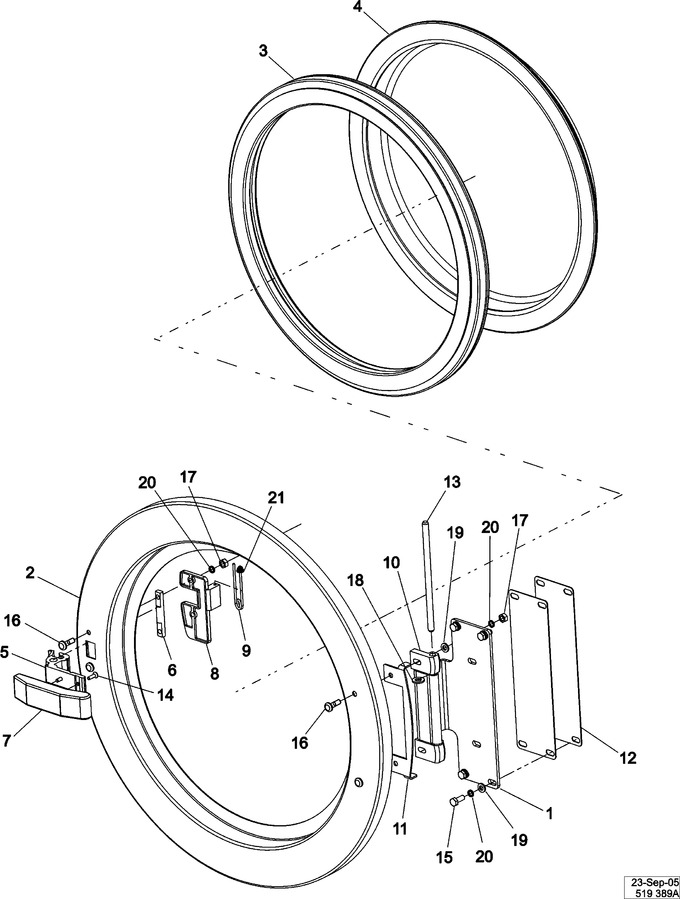

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	23004107		Door Hinge		Appelez-nous	-
002	23004108		Door Frame		Appelez-nous	-
003	23003859		Doorseal		Appelez-nous	-
004	23004109		Glass		Appelez-nous	-
005	23003858		Handle		Appelez-nous	-
006	23001168		Shaft, Lever		Appelez-nous	-
007	23003860		Plate, Handle Ornamental		Appelez-nous	-
008	23001370		Handle, Lever Plate		Appelez-nous	-
009	23001169		Spring, Handle Lever		Appelez-nous	-
010	23003545		Blocs, Hinge Lu		Appelez-nous	-
011	23004110		Hinge Blook Washer		Appelez-nous	-
012	23004111		Shim		Appelez-nous	-
013	23004112		Door Pin		Appelez-nous	-
014	23004113		Bolt M4x12		Appelez-nous	-
015	23004114		Bolt M6 X 16		Appelez-nous	-
016	23001175		Screw (m6x20 Stainless Steellu		Appelez-nous	-
017	23002280		Nut M6		Appelez-nous	-
018	23003769		Washer M8		Appelez-nous	-
019	23002424		Washer		Appelez-nous	-
020	23002130		Washer (6)		Appelez-nous	-
021	23002499		Washer		Appelez-nous	-
