SELECT A DIAGRAM

01 - Base Frame


02 - Cabinet (pd)


03 - Top Cover Assembly


04 - Door Lock Assembly


05 - Door


06 - Soap Box, Drain & Hose Assembly


07 - Control Panel (pd)


08 - Coin Vault (pd)

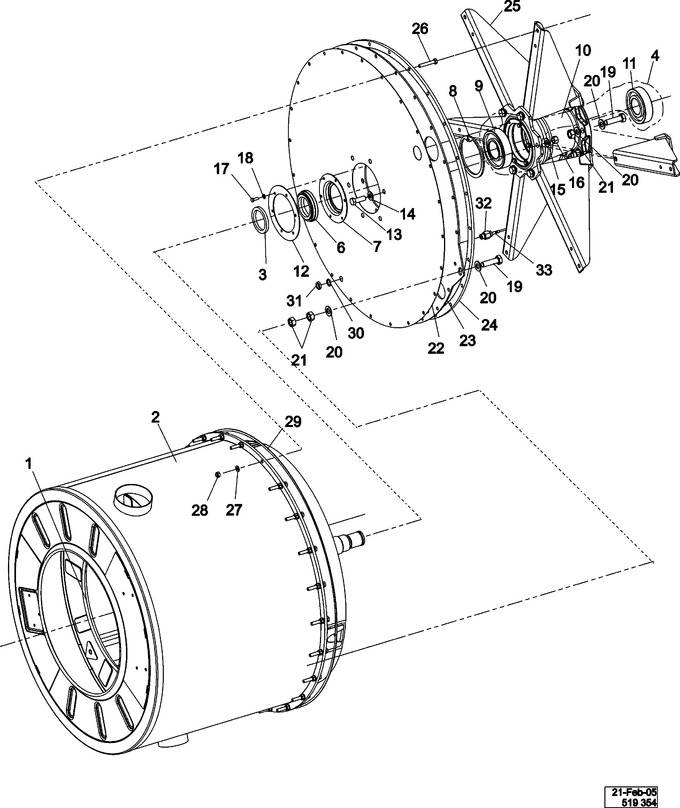

09 - Basket & Outer Shell Assembly


10 - Motor & Basket Pulley


11 - Water Valve & Rear Panel


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	23004218		Inner Tub Mfr50	10	Appelez-nous	-
002	23004219		Outer Tub Mfr50	10	Appelez-nous	-
003	23003608		Ring, Counter	10	Appelez-nous	-
004	23004046		Hub Complete	10	Appelez-nous	-
006	23003616		Seal, Axial	10	Appelez-nous	-
007	23004045		Axial Sealing Bowl	10	Appelez-nous	-
008	23004047		Retaining Ring	10			$ 25.98
009	23003614		Bearing	10	Appelez-nous	-
010	23004048		Hub	10	Appelez-nous	-
011	23003615		Bearing	10	Appelez-nous	-
012	23004049		Sealing Ring	10	Appelez-nous	-
013	23002661		Screw (m12x35)	10	Appelez-nous	-
014	23004193		Washer 13	10	Appelez-nous	-
015	23002657		Washer (13)	10	Appelez-nous	-
016	23003676		Nut M12	10	Appelez-nous	-
017	23004114		Bolt M6 X 16	10	Appelez-nous	-
018	23002281		Washer (6-copper)	10	Appelez-nous	-
019	23002931		Screw (m14x50)	10	Appelez-nous	-
020	23004194		Washer15	10	Appelez-nous	-
021	23003746		Nut, M14	10	Appelez-nous	-
022	23004195		Foil(backplate)	10	Appelez-nous	-
023	23004196		Reinforcement Plate	10	Appelez-nous	-
024	23001197		Ring, Clamp (24 Holes)	10	Appelez-nous	-
025	23004197		Spoke(bracket)	10	Appelez-nous	-
026	23004198		Bolt M8x50	10	Appelez-nous	-
027	23003769		Washer M8	10	Appelez-nous	-
028	23001607		Nut (m8)	10	Appelez-nous	-
029	23004199		Spacer Ring	10	Appelez-nous	-
030	23002179		Washer	10	Appelez-nous	-
031	23002936		Nut, Sensor Bushing	10	Appelez-nous	-
032	23004200		Bracket, Thermostat Sensor	10	Appelez-nous	-
033	23003964		Sensor, Temperature	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
