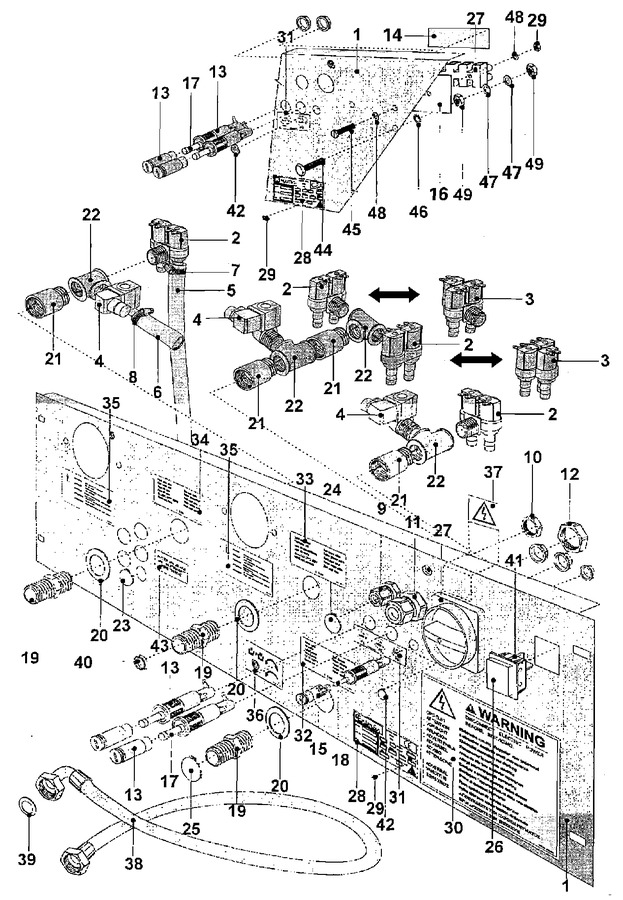

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 001 | NLA | Bridge, Rear | 10 |
|
- | ||||
| 002 | 23001455 | Valve, Two Way (220v 50/60hz) | 10 |
|
- | ||||
| 003 | 23001533 | Valve, Three-way | 10 |
|
$ 99.79 | ||||
| 004 | 23001754 | Valve, One Way (3/4``) | 10 |
|
- | ||||
| 004 | 24001122 | Kit, Valve Repair (13mm) | 10 |
|
- | ||||
| 005 | 23001507 | Waterhose (green) | 10 |
|
- | ||||
| 006 | NLA | Hose 19/27 | 10 |
|
- | ||||
| 007 | WP596669 | Clamp, Hose (Replaces: 23001506) | 10 |
|
Immediately | $ 7.56 | |||
| 008 | WP616099 | Clamp, Hose (20-32) (Replaces: 23001262) | 10 |
|
Immediately | $ 7.03 | |||
| 009 | 23002196 | Swivel, Cable | 10 |
|
- | ||||
| 010 | 23002197 | Nut | 10 |
|
- | ||||
| 011 | 23002211 | Swivel, Cable | 10 |
|
- | ||||
| 012 | 23003138 | Nut | 10 |
|
$ 831.00 | ||||
| 013 | 23002210 | Holder, Fuse | 10 |
|
- | ||||
| 014 | NLA | Label, Terminal | 10 |
|
- | ||||
| 015 | 23001462 | Holder, Fuse | 10 |
|
- | ||||
| 016 | 23001115 | Insulation Paper | 10 |
|
- | ||||
| 016 | 23002399 | Nut(m4) | 10 |
|
- | ||||
| 017 | WP22001555 | Fuse 1a 6x32 (Replaces: 23003385) | 10 |
|
Immediately | $ 27.33 | |||
| 018 | 23002919 | Fuse (5a) | 10 |
|
- | ||||
| 019 | 23001482 | Nipple (3/4`` Pipe Thread) | 10 |
|
$ 747.91 | ||||
| 020 | 23001483 | Washer (dia. 40 X 6.5 X 3) | 10 |
|
- | ||||
| 021 | 23001484 | Extension, Brass Pipe Thread | 10 |
|
- | ||||
| 022 | 23001485 | Tee, 3/4`` Pipe Thread (brass) | 10 |
|
- | ||||
| 023 | 23002795 | Plug | 10 |
|
- | ||||
| 024 | 23002243 | Plug, Universal | 10 |
|
- | ||||
| 025 | 23001476 | Plug, Water Inlet | 10 |
|
$ 705.49 | ||||
| 026 | 23001452 | Plug (wht) | 10 |
|
- | ||||
| 026 | 23001532 | Cover, Button (plastic) | 10 |
|
- | ||||
| 027 | 23002983 | Switch, Main (Replaces: 23002022) | 10 |
|
$ 392.15 | ||||
| 027 | 23002915 | Switch, Main (32a) | 10 |
|
- | ||||
| 027 | 23002923 | Board, Terminal | 10 |
|
- | ||||
| 028 | 23003389 | Identification Plate (maytag) | 10 |
|
- | ||||
| 029 | 23002187 | Bolt, Firing (3.2x7.9) | 10 |
|
- | ||||
| 030 | 23001465 | Sticker, Electricity Warning | 10 |
|
- | ||||
| 031 | 23003328 | Sticker (1a 400v) | 10 |
|
- | ||||
| 031 | NLA | Sticker (1a) | 10 |
|
- | ||||
| 032 | 23001469 | Sticker, Hot Water | 10 |
|
$ 1,212.53 | ||||
| 033 | NLA | Sticker, Cold Hard Water | 10 |
|
- | ||||
| 034 | 23001471 | Sticker, Cold Soft Water | 10 |
|
$ 1,387.22 | ||||
| 035 | 23002053 | Label, Warning Vent Out | 10 |
|
- | ||||
| 036 | 23001468 | Sticker, Spin Direction | 10 |
|
$ 870.39 | ||||
| 037 | 23003390 | Index Plate ``flash`` | 10 |
|
- | ||||
| 038 | 23001486 | Hose, Connection | 10 |
|
$ 846.88 | ||||
| 039 | 23002921 | Washer, Fill Hose | 10 |
|
- | ||||
| 040 | 23002922 | Filter | 10 |
|
- | ||||
| 041 | 23001529 | Button (rapid Advance) | 10 |
|
- | ||||
| 042 | NLA | Plug (13) | 10 |
|
- | ||||
| 043 | 23001509 | Sticker, Pipe Thread | 10 |
|
- | ||||
| 044 | 23002806 | Screw (m6 X 25) | 10 |
|
- | ||||
| 045 | NLA | Screw (m4x20) | 10 |
|
- | ||||
| 046 | 23001734 | Washer (m6) | 10 |
|
- | ||||
| 047 | 23001643 | Washer (m6) | 10 |
|
- | ||||
| 048 | 23002438 | Washer (m6) | 10 |
|
- | ||||
| 049 | 23001515 | Nut (m6) | 10 |
|
- |
