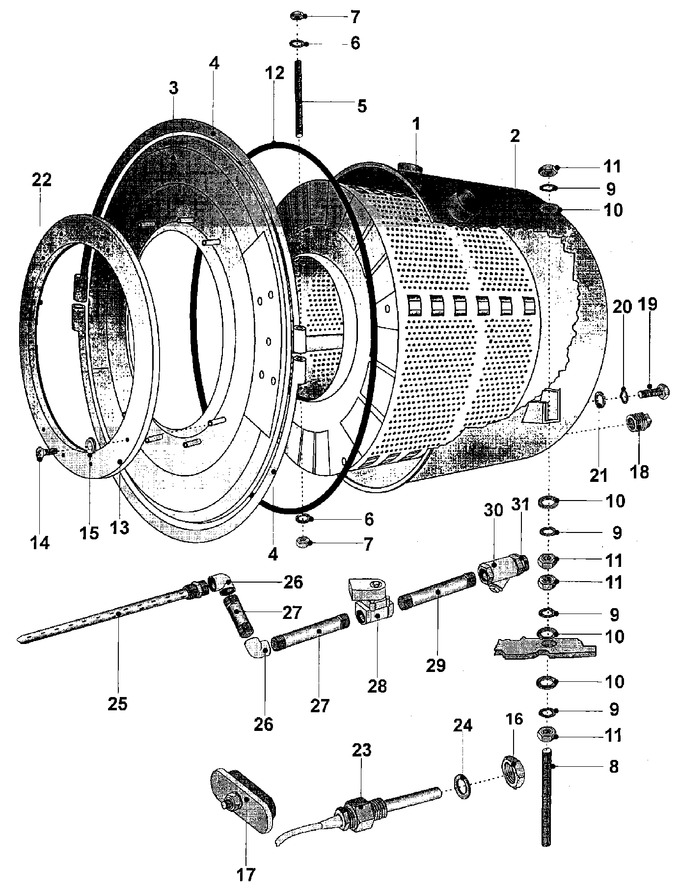

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	23003398		Drum, Complete	10	Appelez-nous	-
002	23003399		Tub, Complete Assy	10	Appelez-nous	-
003	23003400		Panel, Complete Front Tub	10	Appelez-nous	-
004	NLA		Clip	10	Appelez-nous	-
005	23002486		Bolt (m8)	10	Appelez-nous	-
006	23001608		Washer (m8) Lu	10	Appelez-nous	-
007	23002487		Nut (m8)	10	Appelez-nous	-
008	23003401		Bolt, Adjusting	10	Appelez-nous	-
009	23003402		Spring Lock Washer 16 Din 127	10	Appelez-nous	-
010	23003403		Washer 16bn 737	10	Appelez-nous	-
011	23003404		Nut M16 Din 934	10	Appelez-nous	-
012	23002485		Sealing	10	Appelez-nous	-
013	23003405		Plate, Ornamental	10	Appelez-nous	-
014	23002617		Screw (m4x8)	10	Appelez-nous	-
015	23001204		Washer, Finishing (dia. 5)	10			$ 278.89
016	23002936		Nut, Sensor Bushing	10	Appelez-nous	-
017	23001594		Blind, Heating Element	10	Appelez-nous	-
018	23002480		Plug (3/4)	10	Appelez-nous	-
019	NLA		Screw (m8x15)	10	Appelez-nous	-
020	23002427		Washer, Lock (m8)	10	Appelez-nous	-
021	23001608		Washer (m8) Lu	10	Appelez-nous	-
022	23001088		Rubber Trim	10	Appelez-nous	-
023	23001592		Adaptor	10	Appelez-nous	-
024	23002179		Washer	10	Appelez-nous	-
025	23003406		Steam Tube Complete	10	Appelez-nous	-
026	23003407		Elbow (3/4`` 90 Degree)	10	Appelez-nous	-
027	23003408		Tube 2	10	Appelez-nous	-
028	23002819		Valve, Steam (3/4``)	10	Appelez-nous	-
029	23003409		Tube 1	10	Appelez-nous	-
030	23003410		Steam Filter 3/4``	10	Appelez-nous	-
031	NLA		Insert 3/4``	10	Appelez-nous	-
