SELECT A DIAGRAM

01 - Frame


02 - Cabinet


03 - Soap Hopper And Cover


04 - Door Lock


05 - Hoses


06 - Rear Panel And Valves


07 - Drive


08 - Electronics


09 - Tub And Drum


10 - Door


11 - Trunnion

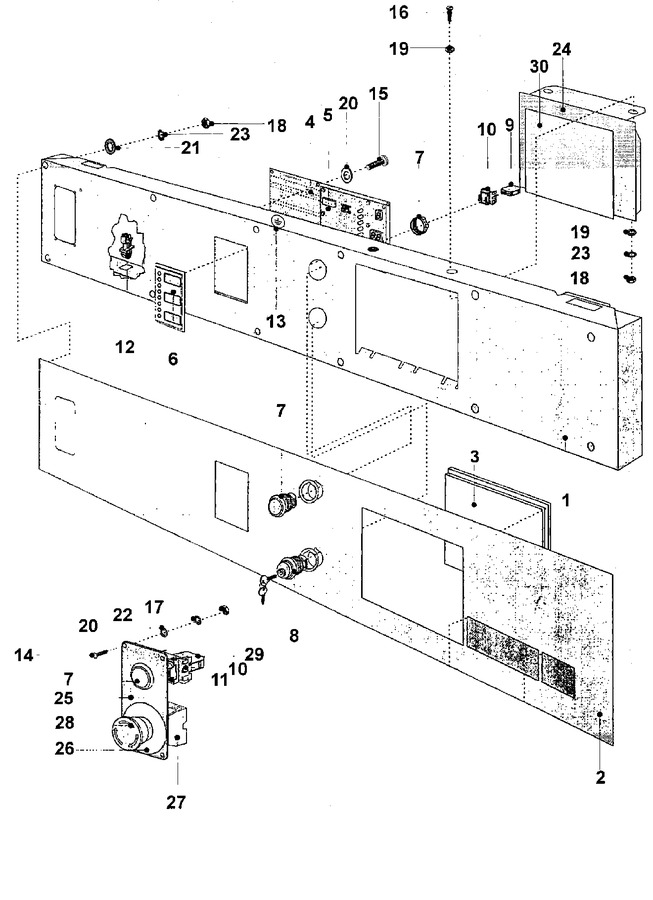

12 - Mkii-lc Control Panel


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	23003429		Panel, Control	10	Appelez-nous	-
002	23003430		Facia, Control Panel	10	Appelez-nous	-
003	23003431		Glass, Control Panel	10	Appelez-nous	-
004	23001525		Microprocessor	10	Appelez-nous	-
005	23003741		Controller, Apl283a V1.07	10	Appelez-nous	-
006	23001526		Plexi, Microprocessor	10			$ 555.21
007	23001537		Push Button	10	Appelez-nous	-
008	23001538		Key Block	10	Appelez-nous	-
009	23001541		Block, Contact (on)	10	Appelez-nous	-
010	23001540		Adapter, Contact Block	10	Appelez-nous	-
011	NLA		Connection Part	10	Appelez-nous	-
012	23001542		Holder	10	Appelez-nous	-
013	NLA		Label, Earth	10	Appelez-nous	-
014	23001064		Screw (m3x10)	10	Appelez-nous	-
015	23002869		Screw (m3x6)	10	Appelez-nous	-
016	23002423		Screw (m4 X 10)	10	Appelez-nous	-
017	23002500		Washer, Lock	10	Appelez-nous	-
018	23002399		Nut(m4)	10	Appelez-nous	-
019	23001610		Washer (4.3)	10	Appelez-nous	-
020	23002174		Washer (3.2)	10	Appelez-nous	-
021	23002504		Washer	10	Appelez-nous	-
022	NLA		Lockwasher (m3)	10	Appelez-nous	-
023	23002111		Washer (4)	10		Immediately	$ 221.87
024	23003432		Glass Holder	10	Appelez-nous	-
025	23002871		Plate, Label	10	Appelez-nous	-
026	23002330		Label, Central Stop	10	Appelez-nous	-
027	23002331		Contactor, Central Stop	10	Appelez-nous	-
028	23002332		Knob, Central Stop	10	Appelez-nous	-
029	23002873		Block, Contact (off)	10	Appelez-nous	-
030	23002195		Pc-pn Conversion Kit	10	Appelez-nous	-
030	23002333		Pc To Pn Conversion (csa)	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
