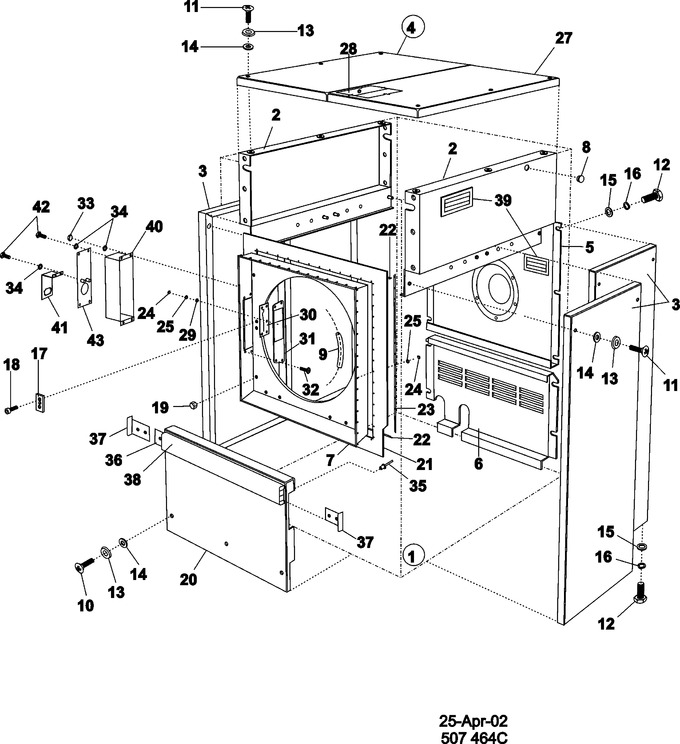

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	23004415		Front Cover Complete	10	Appelez-nous	-
002	23004416		Side Upper Cov (80) Comp	10	Appelez-nous	-
002	23004417		Side Upper Cov (100) Comp	10	Appelez-nous	-
002	23004418		Side Upper Cov (125) Comp	10	Appelez-nous	-
003	23002383		Cover, Side-lower	10	Appelez-nous	-
003	23002384		Cover, Side-lower	10	Appelez-nous	-
003	23003182		Cover, Side (complete)	10	Appelez-nous	-
004	23002385		Cover, Top	10	Appelez-nous	-
004	23002386		Cover, Top	10	Appelez-nous	-
004	23003183		Cover (upper-complete)	10	Appelez-nous	-
005	23002387		Cover, Rear-upper	10	Appelez-nous	-
005	23003184		Cover, Rear (upper)	10	Appelez-nous	-
006	23002388		Cover, Rear-lower	10	Appelez-nous	-
006	23003185		Cover (lower-rear)	10	Appelez-nous	-
007	23003924		Welded Foil Ii	10	Appelez-nous	-
008	23001476		Plug, Water Inlet	10			$ 705.49
009	23002473		Rubber, Protective	10			$ 4.52
010	23002374		Screw (m6x20)	10	Appelez-nous	-
011	23002375		Screw (m6x40)	10	Appelez-nous	-
012	23004114		Screw (m6x18)   (Replaces: 23001618)	10	Appelez-nous	-
013	23002457		Washer	10	Appelez-nous	-
014	23002458		Washer (fiber)	10	Appelez-nous	-
015	23002424		Washer	10	Appelez-nous	-
016	23002130		Washer (6)	10	Appelez-nous	-
017	23002390		Block	10	Appelez-nous	-
018	NLA		Screw (m8x15)	10	Appelez-nous	-
019	NLA		Nut (m6)	10	Appelez-nous	-
020	23002393		Cover, Front-lower	10	Appelez-nous	-
021	23003968		Rubber	10	Appelez-nous	-
022	23003925		Plate, Upper	10	Appelez-nous	-
023	23003926		Plate, Side	10	Appelez-nous	-
024	23003666		Nut (m4)	10	Appelez-nous	-
025	23002400		Washer	10	Appelez-nous	-
027	23002401		Cover, Top	10	Appelez-nous	-
027	23003187		Cover (upper)	10	Appelez-nous	-
028	23002362		Rivet W/crank	10	Appelez-nous	-
029	NLA		Washer	10	Appelez-nous	-
030	23003927		Collar	10	Appelez-nous	-
031	23003928		Cover Lock Welded	10	Appelez-nous	-
032	23002722		Screw (m6x12)	10	Appelez-nous	-
033	23003773		Nut M6	10	Appelez-nous	-
034	20007283		Washer, Spring Lock (6)   (Replaces: 23002440)	10			$ 504.91
035	23002408		Rivet W/crank	10	Appelez-nous	-
036	23003929		Strip, Inner	10	Appelez-nous	-
037	23002410		Bar, Side	10	Appelez-nous	-
038	23003930		Profile	10	Appelez-nous	-
039	23004419		Air Grate	10	Appelez-nous	-
040	23003931		Lock, Cover	10	Appelez-nous	-
041	23003932		Holder	10	Appelez-nous	-
042	23002649		Screw (m6x10)	10	Appelez-nous	-
043	23003933		Cover	10	Appelez-nous	-
