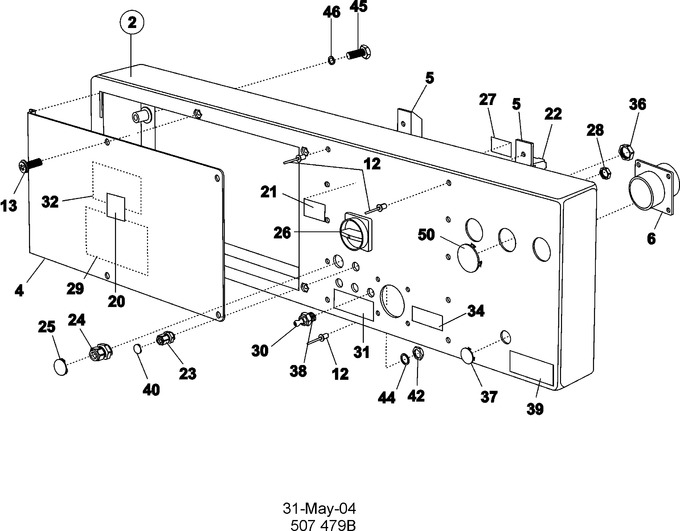

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
002	23004449		Rear Panel, Complete	10	Appelez-nous	-
004	23004450		Cover, Freq Converter	10	Appelez-nous	-
005	23004451		Pumps Frame	10	Appelez-nous	-
006	23002787		Vent, Rear Panel	10	Appelez-nous	-
006	23004452		Elbow	10	Appelez-nous	-
012	NLA		Rivet/crank (4 X 7.5)	10	Appelez-nous	-
013	23002722		Screw (m6x12)	10	Appelez-nous	-
020	23003390		Index Plate ``flash``	10	Appelez-nous	-
021	NLA		Label (warning)	10	Appelez-nous	-
022	23003501		Switch, Main (32a)	10	Appelez-nous	-
023	23002196		Swivel, Cable	10	Appelez-nous	-
024	NLA		Swivel, Cable	10	Appelez-nous	-
025	NLA		Blind, Universal	10	Appelez-nous	-
026	23003497		Knob	10	Appelez-nous	-
027	23004453		Label, Warning Current	10	Appelez-nous	-
028	23002197		Nut	10	Appelez-nous	-
029	23001550		Label, Earth	10	Appelez-nous	-
030	23002788		Head, Greasing	10	Appelez-nous	-
031	23002793		Plate (greasing)	10	Appelez-nous	-
032	23001465		Sticker, Electricity Warning	10	Appelez-nous	-
034	23002053		Label, Warning Vent Out	10	Appelez-nous	-
036	NLA		Nut	10	Appelez-nous	-
037	NLA		Plug (13)	10	Appelez-nous	-
038	NLA		Sleeve, Reducing	10	Appelez-nous	-
039	23003971		Label, Liquid Soap	10	Appelez-nous	-
040	23003997		Plug, Hole	10	Appelez-nous	-
042	23002791		Nut (m14x1.5)	10	Appelez-nous	-
044	23002792		Washer (14)	10	Appelez-nous	-
045	NLA		Screw (m6x10)	10	Appelez-nous	-
046	20007283		Washer, Spring Lock (6)   (Replaces: 23002440)	10			$ 504.91
050	23002795		Plug	10	Appelez-nous	-
