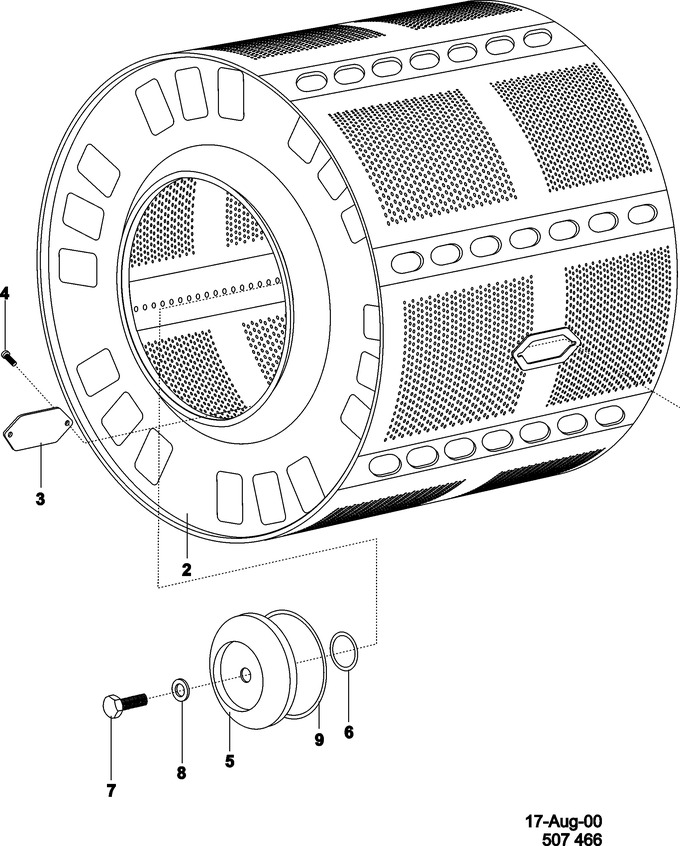

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
002	23002615		Washing Drum 100lb	10	Appelez-nous	-
002	23002616		Washing Drum 125lb	10	Appelez-nous	-
002	23003189		Washing Drum 80lb	10	Appelez-nous	-
003	23002259		Cover	10	Appelez-nous	-
004	23002617		Screw (m4x8)	10	Appelez-nous	-
005	23002618		Washer	10	Appelez-nous	-
006	23002619		O-ring	10	Appelez-nous	-
007	23002620		Bolt, 30mmx80mm, Ss	10	Appelez-nous	-
008	23002621		Washer	10	Appelez-nous	-
009	23002622		O-ring	10	Appelez-nous	-
