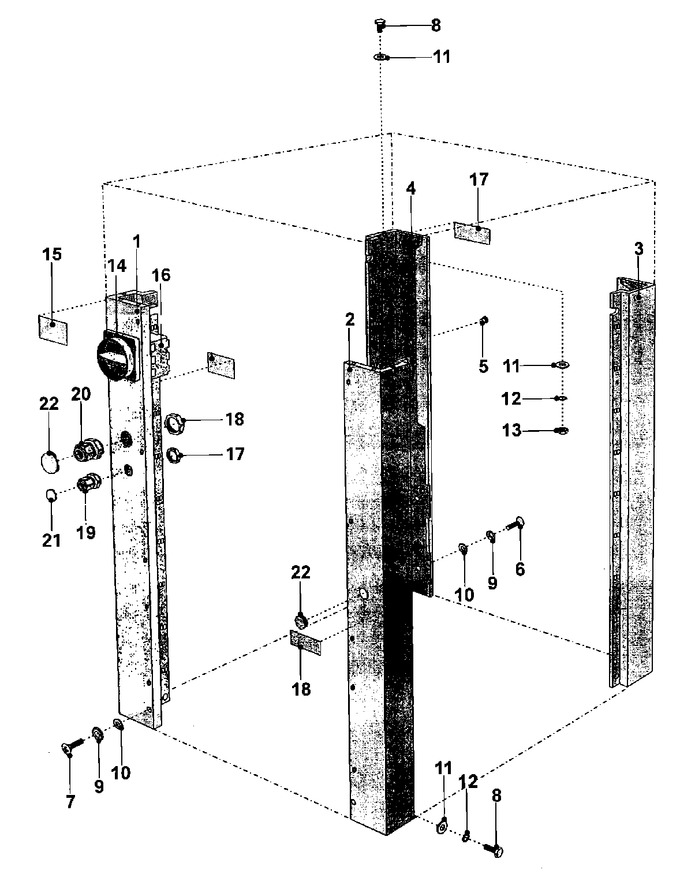

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	23002369		Cover, Right-rear	10	Appelez-nous	-
002	23002370		Cover, Left-rear	10	Appelez-nous	-
003	23002371		Cover, Left-front	10	Appelez-nous	-
004	23002372		Cover, Right-front	10	Appelez-nous	-
005	23002373		End Stop	10	Appelez-nous	-
006	23002374		Screw (m6x20)	10	Appelez-nous	-
007	23002375		Screw (m6x40)	10	Appelez-nous	-
008	NLA		Screw (m6x18)	10	Appelez-nous	-
009	23001337		Washer, Finishing	10	Appelez-nous	-
010	23001338		Washer, Fiber (dia. 15x7x3)	10	Appelez-nous	-
011	23002282		Washer (6)	10	Appelez-nous	-
012	23002138		Washer (10)	10	Appelez-nous	-
013	23002361		Nut (m6)	10	Appelez-nous	-
014	23002141		Knob	10	Appelez-nous	-
015	NLA		Label (warning)	10	Appelez-nous	-
016	23001731		Switch, Main (63a)	10	Appelez-nous	-
016	23002377		Switch, Main (125a)	10	Appelez-nous	-
016	23002915		Switch, Main (32a)	10	Appelez-nous	-
017	23002197		Nut	10	Appelez-nous	-
018	NLA		Nut	10	Appelez-nous	-
019	23002196		Swivel, Cable	10	Appelez-nous	-
020	NLA		Swivel, Cable	10	Appelez-nous	-
021	23002243		Plug, Universal	10	Appelez-nous	-
022	NLA		Blind, Universal	10	Appelez-nous	-
023	23002141		Knob	10	Appelez-nous	-
