SELECT A DIAGRAM

01 - Frame


02 - Cabinet


03 - Panels


04 - Tub


05 - Drum


06 - Trunnion


07 - Motor Drive


08 - Tensioning System


09 - Door


10 - Door Lock


11 - Soap Hopper


12 - Filling System


13 - Valves


14 - Control Panel


15 - Rear Panel


16 - Electronics


17 - Steam Supply


18 - Drain System


19 - Pump Board

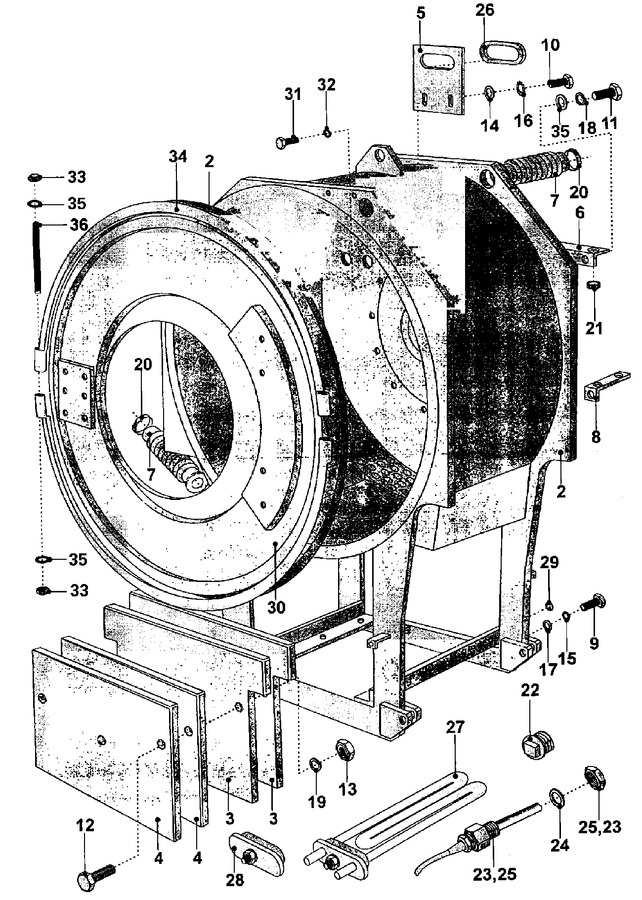

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	23002412		Tub 100lb	10	Appelez-nous	-
001	23002413		Tub 125lb	10	Appelez-nous	-
002	23002485		Sealing	10	Appelez-nous	-
003	23002414		Weight (large)	10			$ 231.19
004	23002415		Weight (small)	10			$ 337.48
005	23002416		Limiter	10	Appelez-nous	-
006	23002417		Holder	10	Appelez-nous	-
007	23003934		Hose, Rubber   (Replaces: 23002474)	10	Appelez-nous	-
008	23002418		Holder, Wire	10	Appelez-nous	-
009	23002353		Screw (m6x12)	10	Appelez-nous	-
010	23004114		Screw (m6x16)   (Replaces: 23002354)	10	Appelez-nous	-
011	23002475		Bolt (m8x20)	10			$ 13.66
012	23002476		Screw (m20x150)	10	Appelez-nous	-
013	23002477		Nut (m20)	10	Appelez-nous	-
014	23002282		Washer (6)	10	Appelez-nous	-
015	NLA		Washer (6.4)	10	Appelez-nous	-
016	20007283		Washer (6)   (Replaces: 23002357)	10			$ 504.91
017	23002130		Washer (6)	10	Appelez-nous	-
018	23002358		Washer (8)	10	Appelez-nous	-
019	23002478		Washer (m20)	10	Appelez-nous	-
020	23001256		Clamp, Hose (60-80)	10	Appelez-nous	-
021	23002479		Passage, Cable	10	Appelez-nous	-
022	23002480		Plug (3/4)	10	Appelez-nous	-
023	23002481		Adapter	10	Appelez-nous	-
024	23002179		Washer	10	Appelez-nous	-
025	23001592		Adaptor	10	Appelez-nous	-
026	23001088		Rubber Trim	10	Appelez-nous	-
027	WPW10399309		Element, Heat 100-125lb   (Replaces: 23002482)	10			$ 174.01
028	23001594		Blind, Heating Element	10	Appelez-nous	-
029	NLA		Label, Earth	10	Appelez-nous	-
030	23002483		Panel, Facia	10	Appelez-nous	-
031	23002353		Screw (m6x12)	10	Appelez-nous	-
032	23002281		Washer (6-copper)	10	Appelez-nous	-
033	23002487		Nut (m8)	10	Appelez-nous	-
034	NLA		Clip	10	Appelez-nous	-
035	23001608		Washer (m8) Lu	10	Appelez-nous	-
036	23002486		Bolt (m8)	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
