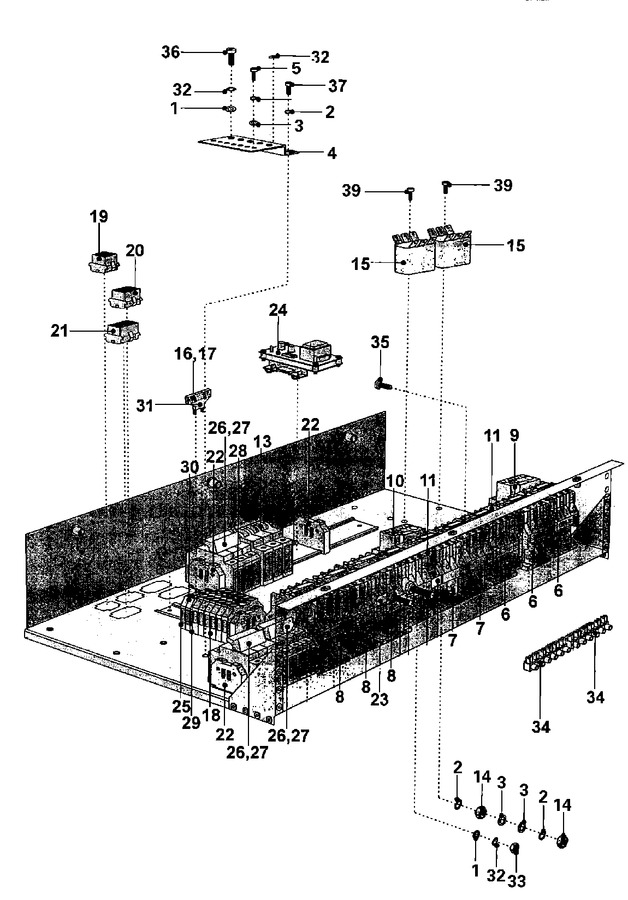

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	23002725		Washer (3)	10	Appelez-nous	-
002	20007283		Washer (6)   (Replaces: 23002357)	10			$ 504.91
003	WP311093		Washer (6.4)   (Replaces: 23002726)	10			$ 7.25
005	23001733		Screw (m6x10)	10	Appelez-nous	-
006	23001101		Contactor (lc1-d1201 M7)	10	Appelez-nous	-
007	23001102		Contactor (lc1-d1801 M7)	10		Immediately	$ 2,343.16
008	23001103		Contactor (lc1-d3201 M7)	10	Appelez-nous	-
009	23001106		Relay, Thermal Overload (4-6a)	10	Appelez-nous	-
010	23001108		Relay, Thermal Overload (7-10a	10	Appelez-nous	-
011	23001119		Mechanical Interlock, Contacto	10	Appelez-nous	-
012	23002796		Contactor (lc1-d1810 M7)	10	Appelez-nous	-
013	23002104		Breaker, Circuit (iii-phase)	10	Appelez-nous	-
014	23001515		Nut (m6)	10	Appelez-nous	-
015	NLA		Net Filter	10	Appelez-nous	-
015	23001518		Series 15 - No Longer Needed		Appelez-nous	-
016	23001463		Fuse (2a)	10	Appelez-nous	-
017	23002043		Fuse (4a)	10	Appelez-nous	-
018	23002797		Clamp	10	Appelez-nous	-
019	23001722		Board, Terminal (amp 9 Poles)	10	Appelez-nous	-
020	NLA		Plate (pumps)	10	Appelez-nous	-
021	23001721		Board, Terminal (amp 15 Poles)	10	Appelez-nous	-
022	23002799		Stop End	10	Appelez-nous	-
023	NLA		Label, Earth	10	Appelez-nous	-
025	NLA		Cover (vast4-4)	10	Appelez-nous	-
026	23002801		Disconnector, Fuse (pst-10x38)	10	Appelez-nous	-
027	23002802		Disconnector, Fuse (pv10gg32a)	10	Appelez-nous	-
028	23002803		Bridge (19.116.217-02)	10	Appelez-nous	-
032	23002400		Washer (4)	10	Appelez-nous	-
033	23002399		Nut(m4)	10	Appelez-nous	-
034	23002154		Board, Terminal (6 Poles)	10	Appelez-nous	-
035	23001609		Screw (m4x12)	10	Appelez-nous	-
036	NLA		Screw (m4x10)	10	Appelez-nous	-
037	23002805		Screw (m4x16)	10	Appelez-nous	-
038	23001733		Screw (m6x10)	10	Appelez-nous	-
039	NLA		Screw (st4.2 X 13)	10	Appelez-nous	-
