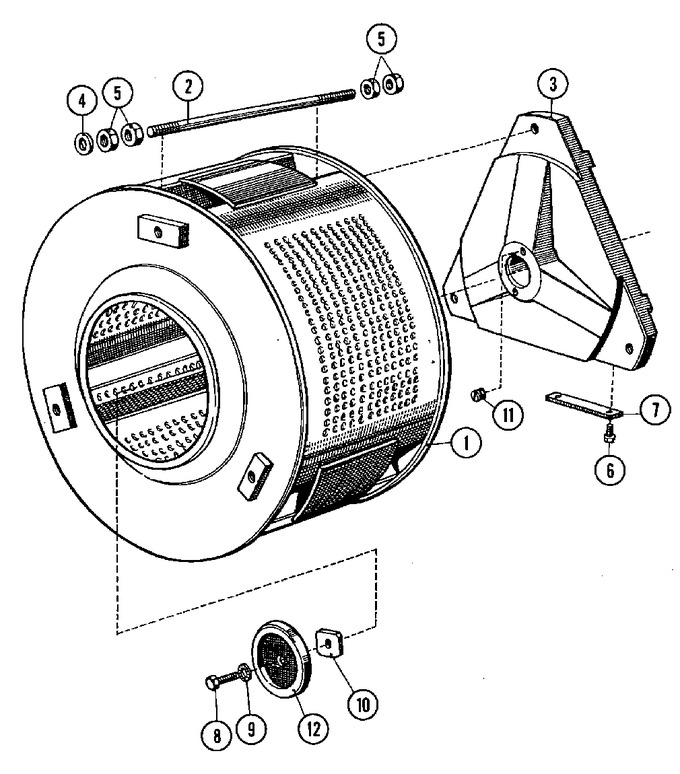

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	23001813		Drum, Inner	10	Appelez-nous	-
001	23001814		Drum, Inner	10	Appelez-nous	-
002	23001815		Rod, Reinforcement Drum	10	Appelez-nous	-
002	23001816		Rod, Reinforcement Drum	10	Appelez-nous	-
003	NLA		Shaft, Reinforcement (main)	10	Appelez-nous	-
004	23001818		Washer	10	Appelez-nous	-
005	23001819		Nut	10	Appelez-nous	-
006	23001820		Bolt (m8)	10	Appelez-nous	-
007	23001821		Washer, Square	10	Appelez-nous	-
008	23001822		Bolt (20mm X 50mm)	10	Appelez-nous	-
009	23001823		Washer, Spring	10	Appelez-nous	-
010	23001824		Washer, Inner Drum	10	Appelez-nous	-
011	23001825		Screw, Blinded	10	Appelez-nous	-
012	23001826		Cover, Main Shaft (inner Drum)	10	Appelez-nous	-
