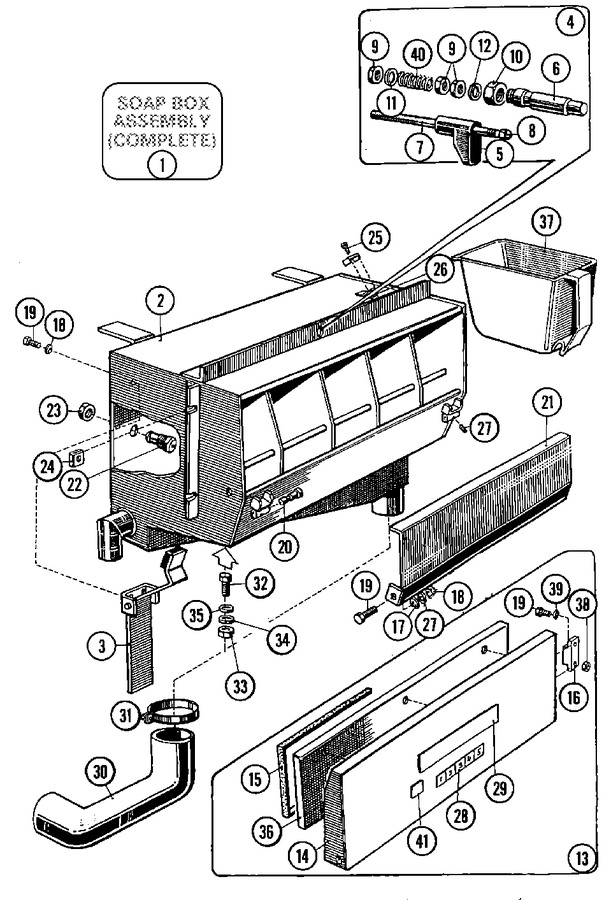

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	23001986		Soap Box Assembly	10	Appelez-nous	-
002	23001987		Soap Box	10	Appelez-nous	-
003	23001673		Level, Soap Box	10	Appelez-nous	-
004	23001665		Lock, Soap Box	10	Appelez-nous	-
005	23001678		Handle	10	Appelez-nous	-
006	23001680		Shaft, Handle	10	Appelez-nous	-
007	23001679		Bolt (m6)	10	Appelez-nous	-
008	23001677		Nut (m6)	10	Appelez-nous	-
009	23001310		Nut, Self Locking (m6)	10	Appelez-nous	-
010	23001303		Nut (m12)	10	Appelez-nous	-
011	23001309		Washer (6.4) Lu	10	Appelez-nous	-
012	23001292		Washer (12)	10	Appelez-nous	-
013	23001996		Door, Soap Box	10	Appelez-nous	-
014	23001997		Door, Soap Box (complete)	10	Appelez-nous	-
015	23001666		Seal (m10x10x1335)   (Replaces: 23001998)	10	Appelez-nous	-
016	23001668		Contact, Magnetic	10	Appelez-nous	-
017	23001670		Washer (4.3)	10	Appelez-nous	-
018	23001636		Washer	10	Appelez-nous	-
019	23001669		Screw (m4x8)	10	Appelez-nous	-
020	23001676		Hinge, Door	10	Appelez-nous	-
021	23002000		Plate, Protecting	10	Appelez-nous	-
022	23001674		Injector	10	Appelez-nous	-
023	23001675		Nut	10	Appelez-nous	-
024	23001339		Nut, Speed	10	Appelez-nous	-
025	23001070		Bolt (m4x10)	10	Appelez-nous	-
026	23001055		Nut (m4)	10	Appelez-nous	-
027	NLA		Screw (m4x6)	10	Appelez-nous	-
028	23002005		Label, Soap Box	10	Appelez-nous	-
029	23002134		Shield (``do Not Open``)	10	Appelez-nous	-
030	23002006		Hose, Soap Box Tube	10	Appelez-nous	-
031	23001256		Clamp, Hose (60-80)	10	Appelez-nous	-
032	NLA		Bolt (m8)	10	Appelez-nous	-
033	23001266		Nut M8	10	Appelez-nous	-
034	23001265		Washer M8	10	Appelez-nous	-
035	23001263		Washer (8.4)	10	Appelez-nous	-
036	23002008		Support, Seal	10	Appelez-nous	-
037	23002135		Cup, Soap Box	10	Appelez-nous	-
038	23001014		Nut M4	10	Appelez-nous	-
039	23001670		Washer (m4)	10	Appelez-nous	-
040	23002010		Spring	10	Appelez-nous	-
041	23002124		Label, Heat Warning	10	Appelez-nous	-
