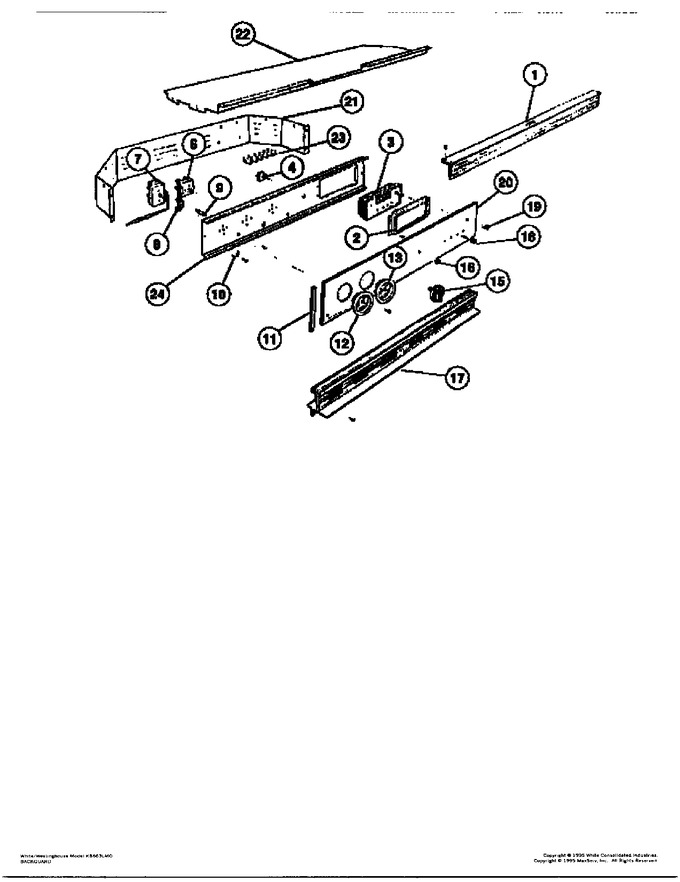

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3202253		Trim-top Vent		Appelez-nous	-
2	3202088		Bracket-clock		Appelez-nous	-
3	3202089		Clock		Appelez-nous	-
4	08003383		Switch-light		Appelez-nous	-
6	K005328201		Switch-selector		Appelez-nous	-
7	3202091		Thermostat S/c		Appelez-nous	-
8	3202099		Bracket-thermostat		Appelez-nous	-
9	3202092		Light-ind. Lock		Appelez-nous	-
9	3015355		Light-ind Oven Light		Appelez-nous	-
10	3202093		Bumper (6)		Appelez-nous	-
11	3202094		Trim-cont. Panel Glass (2)		Appelez-nous	-
12	3202095		Escutcheon S/c Thermostat (upper)		Appelez-nous	-
13	3202096		Escutheon-selector Switch		Appelez-nous	-
15	3202098		Knob (2)		Appelez-nous	-
16	3016305		Bezel-switch		Appelez-nous	-
17	3202101		Trim-center Vent		Appelez-nous	-
18	3016293		Button-clock (4)		Appelez-nous	-
19	3016292		Knob-clock		Appelez-nous	-
20	3202257		Glass-cont Panel		Appelez-nous	-
21	3016250		Housing, Control		Appelez-nous	-
22	3016309		Cover - Cont Housing		Appelez-nous	-
23	3051098		Block Terminal		Appelez-nous	-
24	3202146		Plate, Inst. Mounting		Appelez-nous	-
