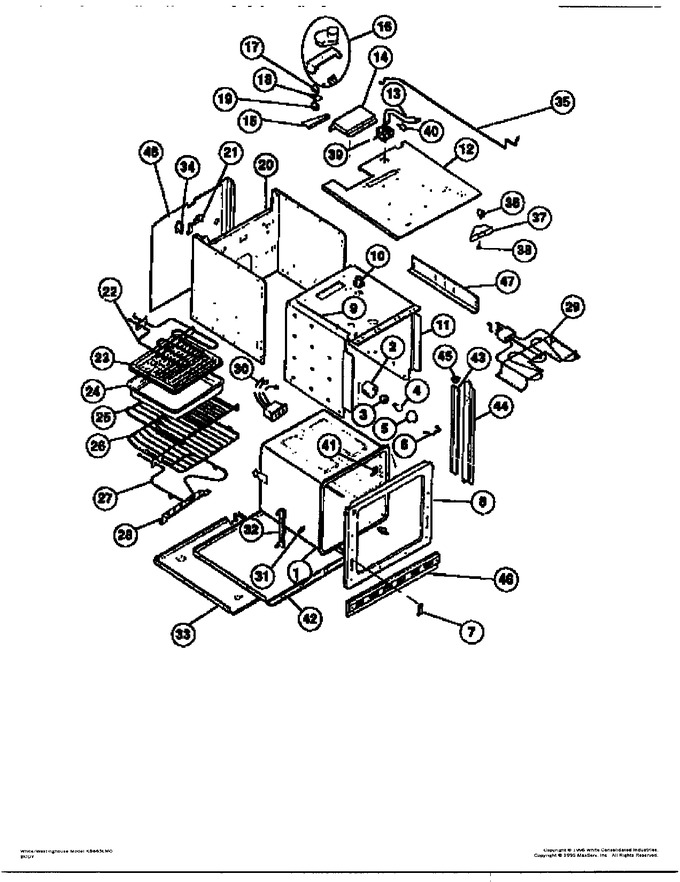

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
02 - Backguard
03 - Door
04 - Body
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3202086 | Liner-oven |
|
- | |||||
| 2 | 3016243 | Tube - Oven Light |
|
- | |||||
| 3 | 08011085 | Receptacle |
|
- | |||||
| 4 | 3013071 | Bulb |
|
- | |||||
| 5 | 5304524341 | Glass - Oven Light Lens (Replaces: 08011086) |
|
Immediately | $ 15.61 | ||||
| 6 | 3016244 | Retainer-lens |
|
- | |||||
| 7 | 3019063 | Retainer - Door (2) |
|
- | |||||
| 8 | 3202076 | Frame - Front |
|
- | |||||
| 9 | 3202077 | Rod |
|
- | |||||
| 10 | 3016245 | Vent-tube Assembly |
|
- | |||||
| 11 | 3016272 | Sheild-wool |
|
- | |||||
| 12 | 3202247 | Wrapper - Top |
|
- | |||||
| 13 | 3016301 | Duct - Vent Tube |
|
- | |||||
| 14 | 3016296 | Cover-motor |
|
- | |||||
| 15 | 3016276 | Bracket-motor Mtg |
|
- | |||||
| 16 | 3016242 | Motor-latch Assembly |
|
- | |||||
| 17 | 3202114 | Switch-top |
|
- | |||||
| 18 | 3051861 | Insulator |
|
- | |||||
| 19 | 08006582 | Switch-bottom |
|
- | |||||
| 20 | 3016275 | Wrapper |
|
- | |||||
| 21 | 3016281 | Spring, Oven (2) |
|
- | |||||
| 22 | 3016247 | Element-broil |
|
- | |||||
| 23 | 3019066 | Insert-broiler Pan |
|
- | |||||
| 24 | 3018808 | Pan-broiler |
|
- | |||||
| 25 | 3202078 | Rack-speed Broil |
|
- | |||||
| 26 | 3016315 | Rack-regular (2) |
|
- | |||||
| 27 | 3016246 | Element-bake |
|
- | |||||
| 28 | 3016248 | Support, Broil Element |
|
- | |||||
| 29 | 3202079 | Element-speed Broil |
|
- | |||||
| 30 | 3202080 | Receptacle Assembly |
|
- | |||||
| 31 | 3201632 | Spacer, Oven (2) |
|
- | |||||
| 32 | 3201631 | Hinge Assembly (2) |
|
$ 58.22 | |||||
| 33 | 3016277 | Wrapepr-base |
|
- | |||||
| 34 | 3202081 | Switch |
|
- | |||||
| 35 | 3016241 | Rod |
|
- | |||||
| 36 | 3051648 | Latch |
|
- | |||||
| 37 | 3019069 | Housing-latch |
|
- | |||||
| 38 | 08012004 | Axle-latch |
|
- | |||||
| 39 | 3016302 | Insulation - Vent |
|
- | |||||
| 40 | 3016303 | Clip-insul Retainer |
|
- | |||||
| 41 | 3202082 | Cover Seam |
|
- | |||||
| 42 | 3016273 | Sheidl-insulation |
|
- | |||||
| 43 | 3016279 | Trim, Inner, Rh |
|
- | |||||
| 43 | 3016280 | Trim, Inner, Lh |
|
- | |||||
| 44 | 3202075 | Trim-side Outer (2) |
|
- | |||||
| 45 | 3016307 | Trim-cap (2) |
|
- | |||||
| 46 | 3016283 | Trim-base |
|
- | |||||
| 47 | 3016278 | Support - Height Adj |
|
- | |||||
| 48 | 3016314 | Cover, Wire |
|
- | |||||
| *06204 | 3019048 | Insulation-wrap |
|
- | |||||
| *06205 | 3016274 | Insulation, Back |
|
- | |||||
| *06206 | 3131060 | Clip-capillary (4) |
|
- |
