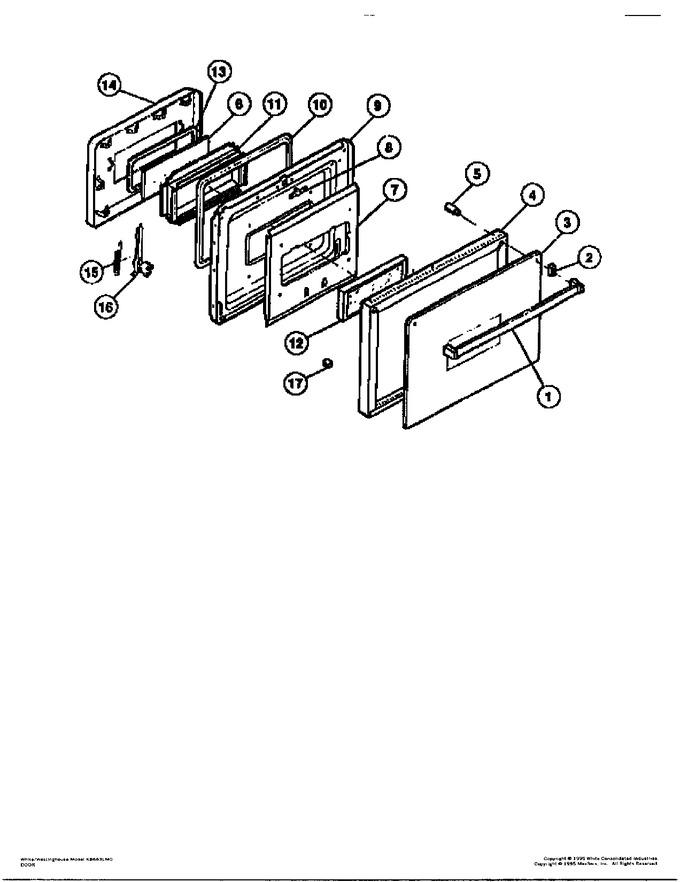

03 - Door


04 - Body


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3202109		Handle		Appelez-nous	-
2	3016259		Spacer-handle (2)		Appelez-nous	-
3	3016258		Glass-outer		Appelez-nous	-
4	3016257		Trim-frame		Appelez-nous	-
5	3016256		Spacer-handle (2)		Appelez-nous	-
6	3016264		Glass-baffle		Appelez-nous	-
7	3016255		Panel - Air Wash		Appelez-nous	-
8	3051707		Strike Assembly		Appelez-nous	-
9	3016284		Liner - Door		Appelez-nous	-
10	3016316		Seal - Door		Appelez-nous	-
11	3016267		Spacer-glass Retainer		Appelez-nous	-
12	3016317		Glass - Window Assy		Appelez-nous	-
13	3016263		Seal - Window				$ 66.15
14	3202110		Baffle - Door		Appelez-nous	-
15	08003186		Spring-door (2)		Appelez-nous	-
16	3018381		Hinge-door (2)		Appelez-nous	-
17	3016266		Spacer - Glass Retainer (4)		Appelez-nous	-
*06200	3201807		Insulation - Door (4)		Appelez-nous	-
*06201	3202112		Clip - Tinnerman (4)		Appelez-nous	-
*06202	3202113		Button - Spacer (2)		Appelez-nous	-
*06203	3202266		Tape - Inner Door 45``		Appelez-nous	-
