SELECT A DIAGRAM
01 - Top And Console Parts

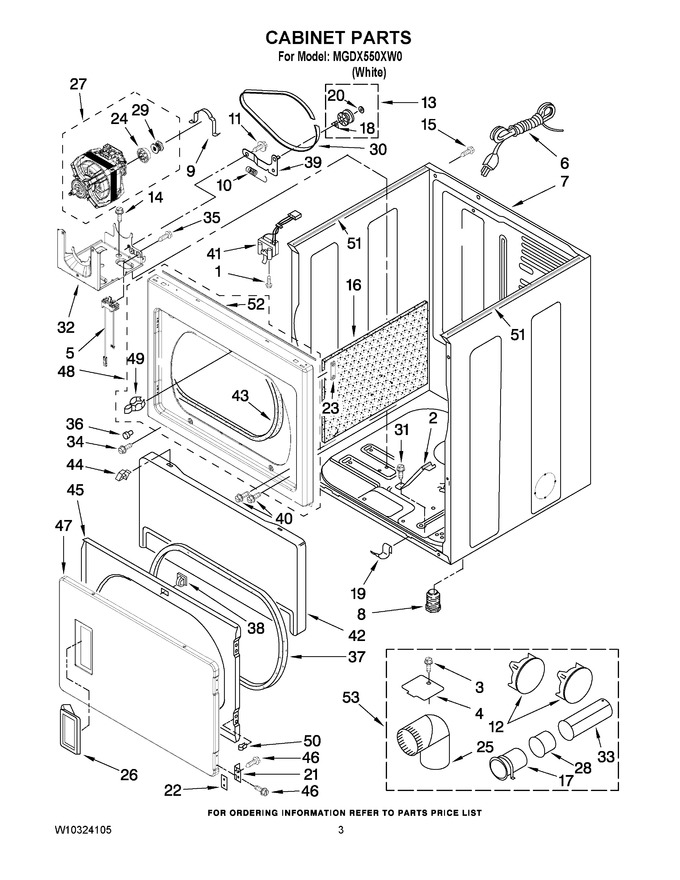

02 - Cabinet Parts
03 - Bulkhead Parts
04 - 8576353 Burner Assembly
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP3395530 | Screw, 6-20 X 7/8 (Replaces: 697773) |
|
$ 6.93 | |||||
| 2 | W10181903 | Bracket, Burner (Replaces: 8529757) |
|
- | |||||
| 3 | WP488729 | Screw (Replaces: 488729) |
|
Immediately | $ 7.01 | ||||
| 4 | WPW10354249 | Plate, Cover (Replaces: 3394331) |
|
$ 8.06 | |||||
| 5 | WPW10411937 | Switch, Broken Belt (Replaces: W10246525) |
|
Immediately | $ 30.91 | ||||
| 6 | W11222083 | Cord, Power (Replaces: 344020) |
|
$ 108.53 | |||||
| 7 | W11417441 | Cabinet (Replaces: 8310656) |
|
$ 377.29 | |||||
| 8 | 49621 | Foot, Dryer (Replaces: 3392100) |
|
Immediately | $ 7.70 | ||||
| 9 | WP660658 | Clamp, Motor (2) (Replaces: 660658) |
|
$ 7.05 | |||||
| 10 | WPW10446781 | Spring, Idler (Replaces: 3387374) |
|
Immediately | $ 22.11 | ||||
| 11 | WP3389420 | Retainer, Idler (Replaces: 3389420) |
|
$ 7.22 | |||||
| 12 | W10470674 | Plug, Multivent (Replaces: 697750) |
|
Immediately | $ 68.99 | ||||
| 13 | 279640 | Pulley Assembly (Replaces: 3388672) |
|
Immediately | $ 29.26 | ||||
| 14 | WP681414 | Screw, 10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 7.07 | ||||
| 15 | W10850756 | Screw, Ground (Replaces: 8533974) |
|
$ 6.98 | |||||
| 16 | W10123956 | Sound Panel |
|
- | |||||
| 17 | WP8563747 | Exhaust Pipe & Bracket (Replaces: 8563747) |
|
$ 82.24 | |||||
| 18 | WPW10512946 | Tri- Ring (Replaces: 690997) |
|
Immediately | $ 7.92 | ||||
| 19 | WP297092 | Clip (2) (Replaces: 297092) |
|
Immediately | $ 7.42 | ||||
| 20 | WPW10121334 | Washer (Replaces: W10121334) |
|
Immediately | $ 6.47 | ||||
| 21 | W11175815 | Hinge & Pin Assembly (Replaces: 3389247) |
|
$ 73.27 | |||||
| 22 | WP3390902 | Clip, Door Hinge (Replaces: 3390902) |
|
$ 10.00 | |||||
| 23 | W10191265 | Plug, Hinge Screw |
|
$ 39.85 | |||||
| 24 | WP3393657 | Restrainer, Belt (Replaces: 3393657) |
|
Immediately | $ 119.21 | ||||
| 25 | WPW10416072 | 4`` - 90 Elbow (Replaces: 49026) |
|
$ 24.14 | |||||
| 26 | WPW10284182 | Handle, Door (Replaces: W10284182) |
|
Immediately | $ 84.89 | ||||
| 27 | WPW10508324 | Motor, Assembly 60 Hz. (Replaces: W10281085) |
|
Immediately | $ 293.92 | ||||
| 28 | WPW10331278 | Exhaust Pipe (short) (Replaces: 8563750) |
|
$ 71.06 | |||||
| 29 | W10837625 | Pulley, Motor (Replaces: 3389729) |
|
Immediately | $ 10.94 | ||||
| 30 | WPW10112954 | Belt, Drive (Replaces: W10112954) |
|
Immediately | $ 90.27 | ||||
| 31 | WP693995 | Screw 8-18 X 3/8 (Replaces: 693995) |
|
Immediately | $ 6.47 | ||||
| 32 | W11481730 | Bracket, Motor (Replaces: W10242878) |
|
Immediately | $ 79.05 | ||||
| 33 | WP8563749 | Exhaust Pipe (long) (Replaces: 8563749) |
|
$ 79.92 | |||||
| 34 | W10891954 | Screw, 8-18 X 3/8 (Replaces: 8281212) |
|
- | |||||
| 35 | WP98129 | Screw, 6-20 X 1 3/8 (Replaces: 98129) |
|
$ 6.80 | |||||
| 36 | 693152 | Bumper |
|
$ 9.86 | |||||
| 37 | WP3390735 | Door Seal (Replaces: 3390735) |
|
$ 117.54 | |||||
| 38 | 279570 | Catch, Door Assembly (Replaces: 3392538) |
|
Immediately | $ 8.00 | ||||
| 39 | W10837240 | Idler Bracket (Replaces: 3388674) |
|
Immediately | $ 32.20 | ||||
| 40 | WP308685 | Screw,10-16 X 1/2 (Replaces: 3357011) |
|
Immediately | $ 7.08 | ||||
| 41 | WP3406107 | Door Switch Assembly (Replaces: 3406107) |
|
Immediately | $ 28.08 | ||||
| 42 | WP3406797 | Toe, Panel (includes Item. 36) (Replaces: 697215) |
|
$ 214.50 | |||||
| 43 | WP3387242 | Seal, Front Panel (Replaces: 3387242) |
|
Immediately | $ 28.28 | ||||
| 44 | WP3388229 | Retainer (Replaces: 3388229) |
|
Immediately | $ 7.61 | ||||
| 45 | 280083 | Door, Inner (Replaces: 3392563) |
|
$ 258.32 | |||||
| 46 | WP488627 | Screw, 8-18 X 3/8 (Replaces: 342055) |
|
$ 6.81 | |||||
| 47 | W10322551 | Door, Outer (Replaces: W10279721) |
|
$ 141.07 | |||||
| 48 | W10115218 | Front Panel |
|
$ 289.13 | |||||
| 49 | 279570 | Strike, Door (Replaces: 696144) |
|
Immediately | $ 8.00 | ||||
| 50 | 3389249 | Nut, Inner |
|
- | |||||
| 51 | W10336128 | Seal, Cabinet (Replaces: W10307570) |
|
$ 12.92 | |||||
| 52 | WP8318396A | Foam-seal (Replaces: 8318396) |
|
$ 34.04 | |||||
| 53 | W10470674 | Dryer Exhaust Kit (for Side & Bottom Venting) (white) (Replaces: 279818) |
|
Immediately | $ 68.99 | ||||
| NI | 49621 | Foot - Optional (extended Length Package Of 2 (not Included) (Replaces: 279810) |
|
Immediately | $ 7.70 |
