03 - Bulkhead Parts

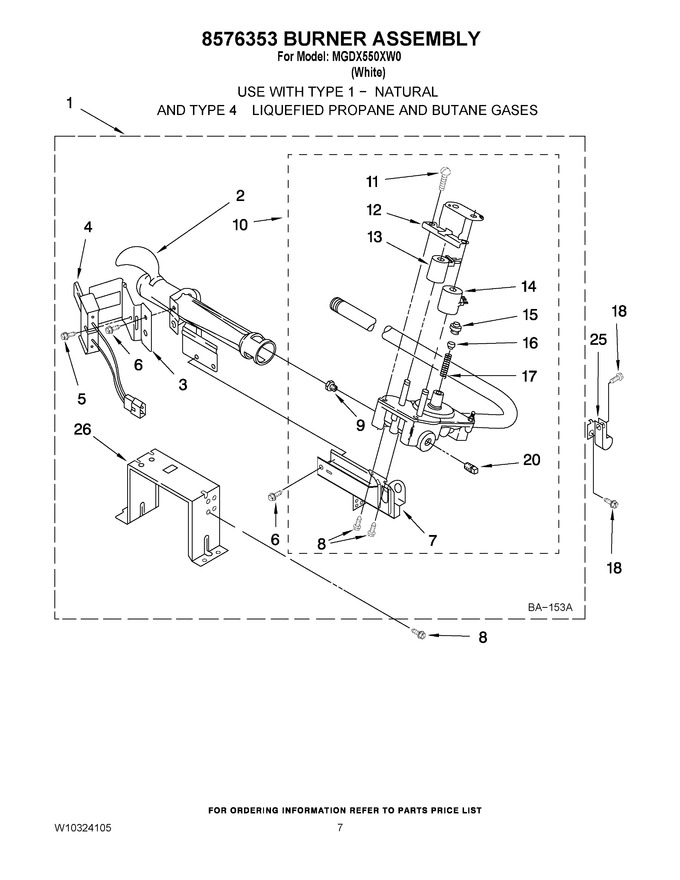

04 - 8576353 Burner Assembly


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	280119		Burner Assembly 60 Hz. (type 1) (white Rodgers)   (Replaces: 8576353)				$ 374.52
2	WP693140		Tube, Burner   (Replaces: 688617)				$ 161.89
3	WP694298		Bracket, Ignitor   (Replaces: 694298)				$ 23.33
4	279311		Ignitor   (Replaces: 686590)			Immediately	$ 71.01
5	WPW10366705		Screw & Washer (8-32 X 7/8)   (Replaces: 3393909)				$ 6.75
6	WP681414		Screw, 10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.07
7	3389871		Base, Burner				$ 71.36
8	WP693995		Screw, 8-18 X 3/8   (Replaces: 3387057)			Immediately	$ 6.47
9	WP15418		Orifice, Burner Type 1   (Replaces: 15418)				$ 31.99
9	15422		Orifice, Burner (type 4 (butane))				$ 3,097.28
9	WP229742		Orifice, Burner (type 4 (propane))   (Replaces: 234867)				$ 31.37
10	WPW10118347		Valve, Gas 60 Hz. (complete) (includes Pipe & Illus. No.7).   (Replaces: W10118347)			Immediately	$ 303.87
11	694421		Screw, 8-32 X 1/2 (2)		Appelez-nous	-
12	694538		Bracket, Coil				$ 72.05
13	279834		Coil, 60 Hz. (2 Terminal) (main)   (Replaces: 694540)			Immediately	$ 29.57
14	279834		Coil, 60 Hz.(split) (3 Terminal) (pilot Position)   (Replaces: 694539)			Immediately	$ 29.57
15	WP694424		Leak, Limiter   (Replaces: 694424)				$ 31.11
16	WP694423		Screw, Regulator Adjustment   (Replaces: 694423)				$ 6.26
17	WP694422		Spring, Regulator   (Replaces: 694422)				$ 21.84
18	WP488729		Screw, 8-18 X 1/2   (Replaces: 3390647)			Immediately	$ 7.01
20	W10295523		Plug, Pipe   (Replaces: 239822)		Appelez-nous	-
25	3387561		Clamp, Pipe		Appelez-nous	-
26	3389888		Bracket, Support   (Replaces: 3389889)		Appelez-nous	-
NI	W11581317		Conversion Kit (type (1) To Type (4) Lpg).   (Replaces: 8576846)			Immediately	$ 83.85
