SELECT A DIAGRAM

01 - Top And Console Parts


02 - Cabinet Parts

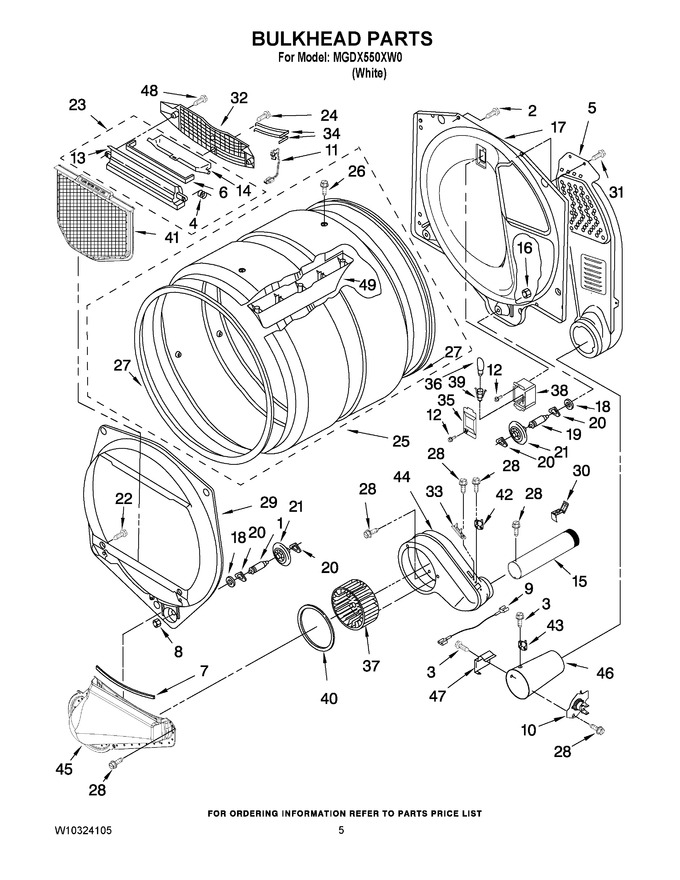

03 - Bulkhead Parts


04 - 8576353 Burner Assembly


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10359271		Shaft, R.h. Thread   (Replaces: 8575324)			Immediately	$ 55.99
2	WP488729		Screw, 8-18 X 1/2   (Replaces: 3390647)			Immediately	$ 7.01
3	WP90767		Screw, 8/18 X 3/8   (Replaces: 90767)			Immediately	$ 7.04
4	WP3394986		Spring, Lint Screen Door   (Replaces: 3394986)				$ 76.13
5	WPW10293765		Air Duct Assembly   (Replaces: W10293765)				$ 304.75
6	WP697813		Seal, Outlet Housing   (Replaces: 697813)			Immediately	$ 7.17
7	WP697813		Seal, Drum Front   (Replaces: 697814)			Immediately	$ 7.17
8	W11812294		Nut,3/8 X 16 (r.h.)   (Replaces: 3934666)				$ 10.94
9	3401710		Jumper-tco Hi-limit		Appelez-nous	-
10	WP8573713		Thermal Cut-off   (Replaces: 8573713)			Immediately	$ 65.26
11	WPW10298258		Harness, Sensor   (Replaces: W10298258)			Immediately	$ 7.06
12	WP488729		Screw, 8-15 X 1/2   (Replaces: 487909)			Immediately	$ 7.01
13	W11129408		Housing, Outlet   (Replaces: W10153414)				$ 47.95
14	W11222846		Door, Lint Screen   (Replaces: W10153413)			Immediately	$ 183.35
15	279936		Exhaust Pipe   (Replaces: 8066224)				$ 132.16
16	WPW10080190		Nut, 3/8-16 (l.h.)   (Replaces: W10001120)			Immediately	$ 7.64
17	W11299301		Bulkhead, Rear   (Replaces: 8520836)				$ 222.98
18	W11236646		Washer-support   (Replaces: 3387459)			Immediately	$ 12.63
19	WPW10359272		Shaft, L.h. Thread   (Replaces: 8575325)			Immediately	$ 52.63
20	WPW10512946		Ring Tri   (Replaces: 690997)			Immediately	$ 7.92
21	WPW10314173		Roller, Support   (Replaces: 8536973)			Immediately	$ 25.65
22	WP488627		Screw, 8-18 X 1/2   (Replaces: 342055)				$ 6.81
23	W11219327		Outlet Housing Assembly   (Replaces: W10153423)				$ 81.49
24	W11693756		Screw, 8-18 X 1/2   (Replaces: 359625)			Immediately	$ 12.65
25	W10545923		Complete Drum Assembly   (Replaces: 8318215)				$ 393.08
26	W10853898		Screw, 11-16 X 3/4   (Replaces: W10219342)			Immediately	$ 6.98
27	280114		Seal, Drum   (Replaces: 697694)			Immediately	$ 63.74
28	WP90767		Screw   (Replaces: 8533971)			Immediately	$ 7.04
29	WP697557		Bulkhead, Front   (Replaces: 697557)				$ 187.23
30	W11684573		Clip-exhaust   (Replaces: 8572105)				$ 7.00
31	WP489463		Screw   (Replaces: 489463)				$ 7.04
32	W11086603		Grille, Outlet   (Replaces: W10153412)			Immediately	$ 31.63
33	WP3392519		Thermal Fuse   (Replaces: 3392519)			Immediately	$ 22.46
34	WP3387223		Electrode (sensor)   (Replaces: 3387223)			Immediately	$ 5.55
35	W11226088		Lens, Drum Light   (Replaces: 3402841)				$ 27.98
36	WP22002263		Bulb, Light   (Replaces: 3406124)			Immediately	$ 12.29
37	WP697772		Wheel, Blower   (Replaces: 697772)			Immediately	$ 53.16
38	8578825		Bracket, Light				$ 18.79
39	W11222979		Socket Assembly   (Replaces: W10214261)				$ 101.82
40	WP697770		Seal, Cover Plate   (Replaces: 697770)			Immediately	$ 7.09
41	W10120998		Screen, Lint   (Replaces: W10049370)				$ 60.44
42	WP8577274		Thermister   (Replaces: 8577274)			Immediately	$ 39.25
43	WP3391912		Thermostat High-limit 255 F   (Replaces: 3391912)			Immediately	$ 64.40
44	W10888146		Housing, Blower   (Replaces: 8544362)				$ 91.53
45	WPW10128606		Lint Duct Assembly   (Replaces: 8066168)				$ 186.41
46	WP8573824		Funnel, Burner   (Replaces: 8573824)				$ 158.82
47	WP338906		Sensor, Radiant   (Replaces: 338906)			Immediately	$ 46.72
48	WP3387230		Screw, 10-16 X 13/16   (Replaces: 3387230)			Immediately	$ 7.69
49	W11782150		Baffle, Drum   (Replaces: 697693)			Immediately	$ 81.92

    View Diagram in Separate Window       Print Part List
