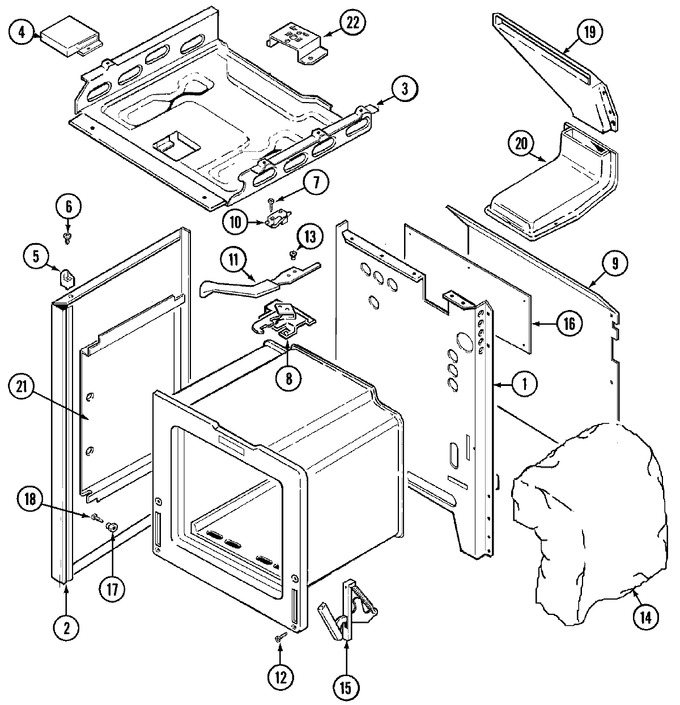

01 - Body
02 - Control Panel
03 - Door/drawer
04 - Gas Controls
05 - Oven/base
06 - Top Assembly
07 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74003451 | Back, Main | 10 |
|
- | ||||
| 2 | 74003237 | Panel, Side (alm) | 10 |
|
- | ||||
| 2 | 8270P078-60 | Tape, Foil (29 1/2``) | 10 |
|
- | ||||
| 3 | 74003328 | Box, Burner | 10 |
|
- | ||||
| 4 | 4005F430-51 | Cover, Lock Switch | 10 |
|
- | ||||
| 5 | 8010P088-60 | Spacer, Main Top (rt) | 10 |
|
- | ||||
| 5 | 8010P087-60 | Spacer, Main Top (lt) | 10 |
|
- | ||||
| 6 | 7101P313-60 | Screw (8abx3/8-zn) | 10 |
|
- | ||||
| 7 | 7101P330-60 | Screw, Switch | 10 |
|
- | ||||
| 8 | 74003502 | Latch Assy. | 10 |
|
- | ||||
| 8 | 74001084 | Insulation, Door Latch | 10 |
|
- | ||||
| 9 | 4005F331-51 | Cover, Main Back Wire | 10 |
|
- | ||||
| 10 | 7403P361-60 | Switch, Door Latch | 10 |
|
- | ||||
| 11 | 74001075 | Lever, Latch (blk) | 10 |
|
- | ||||
| 12 | WP4159193 | Screw (10-24x5/16-ni) (Replaces: 7101P282-60) | 10 |
|
$ 4.29 | ||||
| 13 | WP4159193 | Screw, Lever (Replaces: 7101P230-60) | 10 |
|
$ 4.29 | ||||
| 14 | 74003382 | Insulation, Back/bottom | 10 |
|
- | ||||
| 14 | 74003381 | Insulation, Oven Wrap | 10 |
|
- | ||||
| 15 | W10876639 | Hinge, Door (Replaces: 74003239) | 10 |
|
$ 129.21 | ||||
| 16 | 3604F165-51 | Shield, Flue (lower) | 10 |
|
- | ||||
| 17 | W10857933 | Spacer, Side Panel (Replaces: 8004P024-60) | 10 |
|
$ 7.07 | ||||
| 18 | 7101P103-60 | Screw | 10 |
|
- | ||||
| 19 | 4022W007-19 | Extension, Flue Box | 10 |
|
- | ||||
| 20 | 74002367 | Box, Vent | 10 |
|
- | ||||
| 21 | 74003422 | Retainer, Insulation (side) | 10 |
|
- | ||||
| 22 | 74003537 | Support, Burner | 10 |
|
- |
