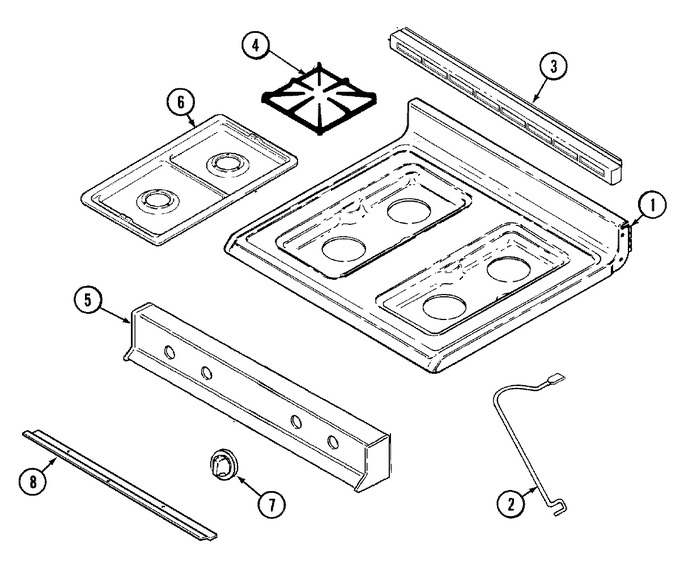

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Body
02 - Control Panel
03 - Door/drawer
04 - Gas Controls
05 - Oven/base
06 - Top Assembly
07 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74003536 | Top, Main (alm) | 10 |
|
- | ||||
| 2 | 74001170 | Support, Top | 10 |
|
- | ||||
| 3 | 74003501 | Trim, Vent (blk) | 10 |
|
- | ||||
| 4 | 74001059 | Grate (blk) | 10 |
|
- | ||||
| 5 | 74004072 | Panel, Manifold (blk) | 11 |
|
- | ||||
| 5 | 74002485 | Panel, Manifold (blk) | 10 |
|
- | ||||
| 5 | WPW10068250 | Screw (Replaces: 7101P074-60) | 10 |
|
$ 3.66 | ||||
| 6 | 1430283 | Drip Bowl Kit (accessory) (Replaces: 5401A433-60) | 10 |
|
$ 95.86 | ||||
| 7 | WP74002353 | Knob, Valve (blk) (Replaces: 74002353) | 10 |
|
$ 18.29 | ||||
| 8 | 74002447 | Shield, Sight | 10 |
|
- |
