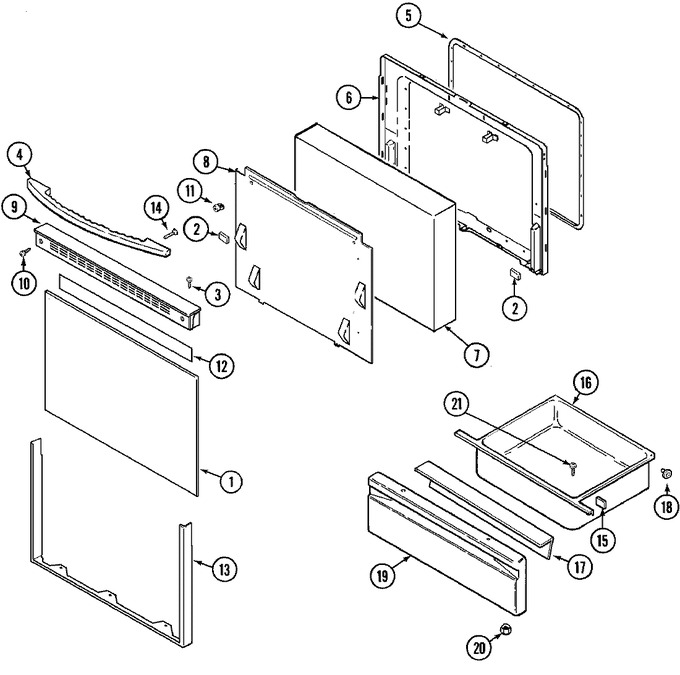

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	74003870		Glass, Door (outer-blk)	10	Appelez-nous	-
2	8010P085-60		Spacer, Rubber	10	Appelez-nous	-
3	WP98008545		Screw (1/2``)   (Replaces: 7101P040-60)	10			$ 15.94
4	74002061		Handle (blk)	11	Appelez-nous	-
4	74003617		Handle, Door (blk)	10			$ 101.85
4	74003617		Handle, Door (blk)	12			$ 101.85
5	WPW10162384		Gasket, Door   (Replaces: 7201P046-60)	10		Immediately	$ 77.61
6	74003245		Lining, Door	10	Appelez-nous	-
7	74001842		Insulation, Door	10	Appelez-nous	-
8	3601F218-51		Baffle, Door Solid	10	Appelez-nous	-
9	74002065		Trim, Top (blk)	10	Appelez-nous	-
10	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
11	7103P045-60		Nut, Nylon	10	Appelez-nous	-
12	8270P078-60		Tape, Foil (29 1/2``)	10	Appelez-nous	-
13	WP98008545		Screw (1/2``)   (Replaces: 7101P040-60)	10			$ 15.94
13	7706P309-60		Frame, Door (blk)	10	Appelez-nous	-
14	WP179051		Screw   (Replaces: 74002059)	10		Immediately	$ 7.16
15	WP854334		Seal, Door Panel   (Replaces: 7208P009-60)	10			$ 11.95
16	74003433		Drawer, Storage	10	Appelez-nous	-
17	2404F030-51		Lining, Drawer Panel	10	Appelez-nous	-
18	74003462		Roller (w/shaft)	10	Appelez-nous	-
18	WP488130		Nut   (Replaces: 7103P082-60)	10			$ 6.27
19	74003522		Panel, Drawer (alm)	10	Appelez-nous	-
20	WPW10131078		Nut, Lock   (Replaces: 7103P139-60)	10			$ 4.00
21	WP7101P072-60		Screw   (Replaces: 7101P072-60)	10			$ 6.77

    View Diagram in Separate Window       Print Part List
