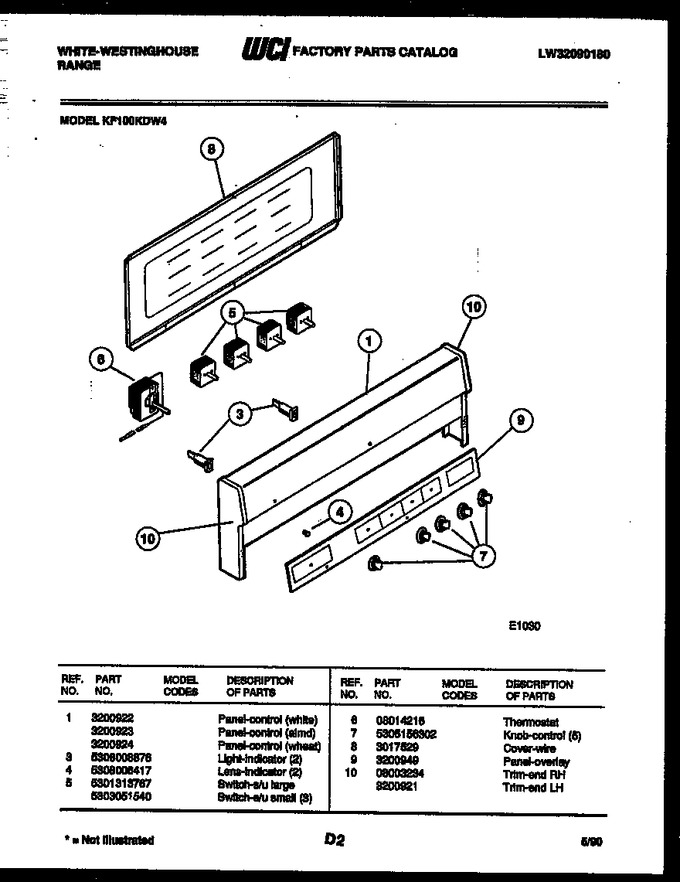

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3200923 | Panel-control (almd) |
|
- | |||||
| 3 | 5308008876 | Light - Indicator (2) |
|
- | |||||
| 4 | 5308006417 | Lens-indicator (2) |
|
$ 19.06 | |||||
| 5 | 5301313767 | Switch-s/u Large |
|
- | |||||
| 6 | 08014216 | Thermostat |
|
- | |||||
| 7 | 5305156302 | Knob-control (5) |
|
- | |||||
| 8 | 3017529 | Cover-wire |
|
- | |||||
| 9 | 3200949 | Panel-overlay |
|
- | |||||
| 10 | 08003234 | Trim-end R.h. |
|
- | |||||
| 10A | 3200921 | Trim-end L.h. |
|
- | |||||
| 5A | 5303051540 | Switch-s/u Small (3) |
|
- |
