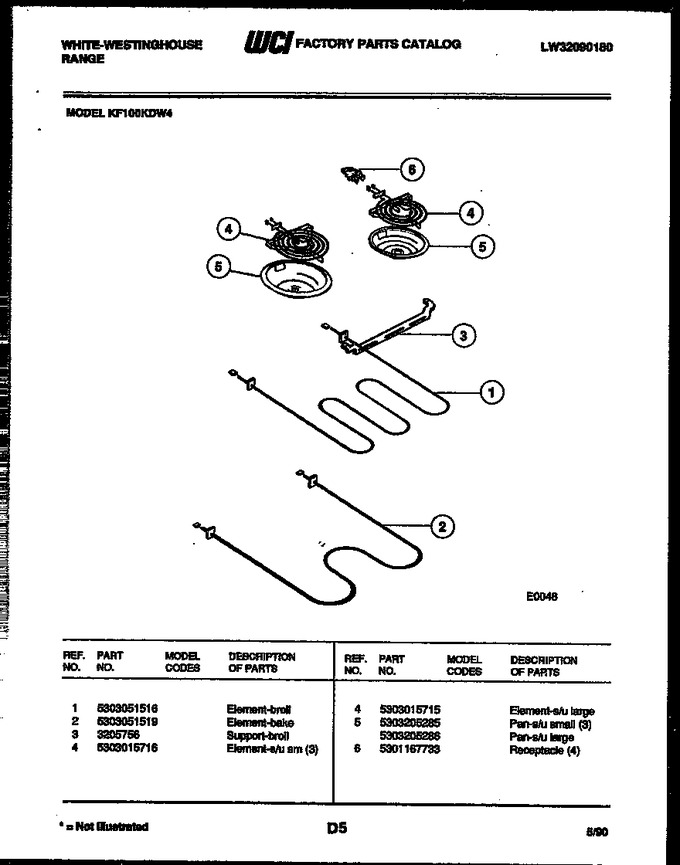

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303051516 | Element-broil |
|
$ 189.23 | |||||
| 2 | 5303051519 | Element-bake |
|
Immediately | $ 44.70 | ||||
| 3 | 3205756 | Support-broil |
|
- | |||||
| 4 | 316442300 | Element-s/u Large (Replaces: 5303015715) |
|
Immediately | $ 59.16 | ||||
| 4 | 318372210 | Element S/u Sm (3) (Replaces: 5303015716) |
|
Immediately | $ 20.21 | ||||
| 5 | 5303205285 | Pan S/u Small (3) |
|
- | |||||
| 6 | 5303935058 | Receptacle (4) (Replaces: 5301167733) |
|
Immediately | $ 13.81 | ||||
| 5A | 5303205286 | Pan S/u Large |
|
- |
