| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

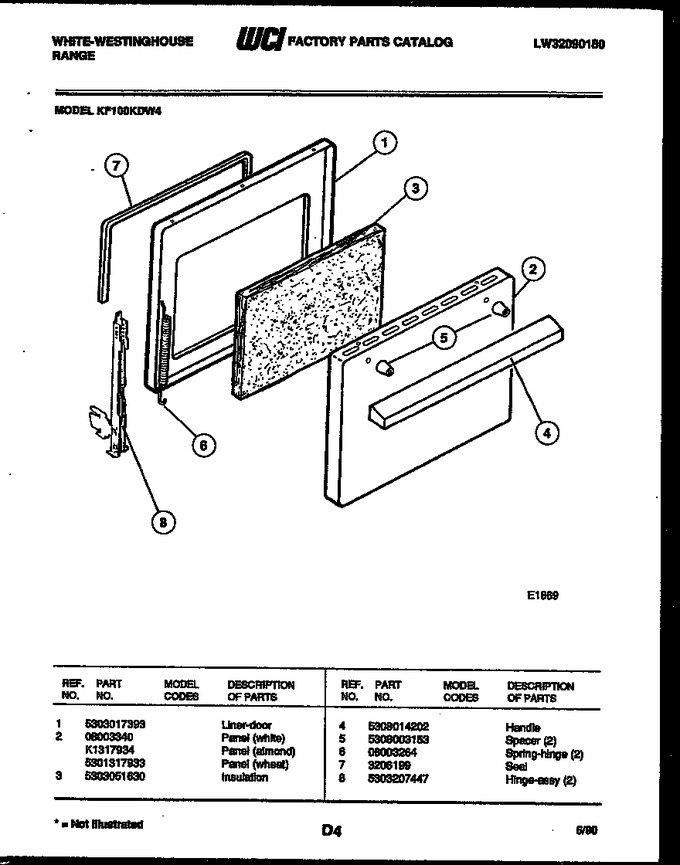

| 1 | 5303017393 | Liner, Door |
|
- | |||||
| 2 | K1317934 | Panel (almond) |
|
- | |||||
| 3 | 5303051630 | Insulation |
|
- | |||||
| 4 | 5308014202 | Handle |
|
- | |||||
| 5 | 5308003153 | Spacer (2) |
|
- | |||||
| 6 | 08003264 | Spring-oven Door |
|
- | |||||
| 7 | 3206199 | Seal |
|
- | |||||
| 8 | 5303207447 | Hinge-assy (2) |
|
- |
