SELECT A DIAGRAM

01 - Cooktop Parts


02 - Control Panel Parts

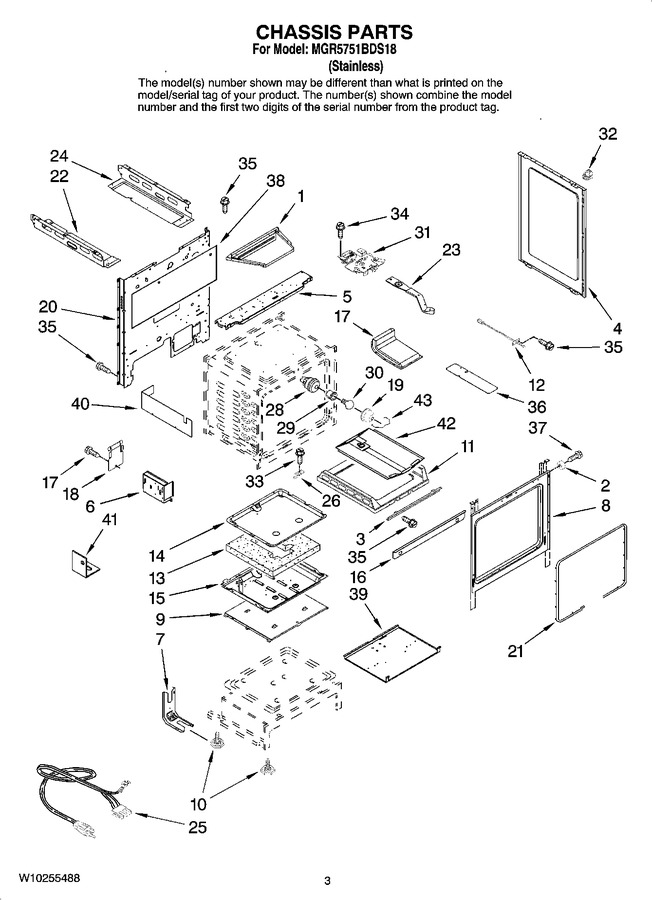

03 - Chassis Parts


04 - Manifold Parts


05 - Door Parts


06 - Drawer And Rack Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4022W007-19		Extension, Flue Box		Appelez-nous	-
2	W10857933		Spacer, Side Panel   (Replaces: 8004P024-60)				$ 7.07
3	W10857933		Support, Oven Bottom   (Replaces: 8004P024-60)				$ 7.07
4	74003283		Panel, Side (2) (black)		Appelez-nous	-
5	74007129		Support, Valve Regulator				$ 9.81
6	74009583		Support, Spark Module		Appelez-nous	-
7	WP3801F656-51		Bracket, Anti-tip   (Replaces: 74005564)			Immediately	$ 4.69
9	74006574		Shield, Heat		Appelez-nous	-
10	W11665456		Foot, Leveler (4)   (Replaces: 74002373)			Immediately	$ 25.30
11	74011228		Bottom, Oven		Appelez-nous	-
12	12001655		Sensor, Oven   (Replaces: 74004944)			Immediately	$ 41.01
13	74003503		Insulation, Bottom		Appelez-nous	-
14	74004465		Pan, Burner Bake		Appelez-nous	-
15	74009480		Retainer, Insul.		Appelez-nous	-
16	74001219		Baffle, Oven Frnt		Appelez-nous	-
17	74006420		Box, Vent		Appelez-nous	-
18	74009653		Cover, Broil		Appelez-nous	-
19	74003389		Cover, Bulb		Appelez-nous	-
20	74009884		Back, Main		Appelez-nous	-
21	WPW10162384		Seal, Oven   (Replaces: 7201P046-60)			Immediately	$ 77.61
22	74009767		Box, Brnr (left)		Appelez-nous	-
23	74010244		Lever, Lock				$ 5.27
24	74009768		Box, Brnr (rt)		Appelez-nous	-
25	74009826		Cord, Power		Appelez-nous	-
26	74010812		Support, Oven Bottom		Appelez-nous	-
28	74003388		Light Assembly		Appelez-nous	-
29	74003387		Receptacle, Bulb				$ 5.84
30	8009		Bulb, Oven Light   (Replaces: W10132113)			Immediately	$ 16.80
31	74009764		Latch, Door Lock				$ 142.25
32	8010P088-60		Spacer (right)		Appelez-nous	-
32	8010P087-60		Spacer (left)		Appelez-nous	-
33	WP74003976		Screw (2)   (Replaces: 74003976)				$ 6.47
34	74003975		Screw				$ 12.02
35	W11233072		Screw   (Replaces: 74001530)			Immediately	$ 12.62
36	74009569		Shield, Heat		Appelez-nous	-
37	WPW10348409		Screw   (Replaces: 74007476)			Immediately	$ 6.98
38	3604F165-51		Shield, Flue (lower)		Appelez-nous	-
39	W10177095		Shield, Warming		Appelez-nous	-
40	74005465		Cover, Burner		Appelez-nous	-
41	W10177006		Support, Bake		Appelez-nous	-
42	W10179632		Baffle, Burner		Appelez-nous	-
43	74003391		Retainer, Cover		Appelez-nous	-
NI	74009201		Insulation, Wrap				$ 83.18
NI	74010942		Insulation, Back				$ 56.05
NI	7002P140-60		Insulation, Oven		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
