SELECT A DIAGRAM

01 - Cooktop Parts


02 - Control Panel Parts


03 - Chassis Parts

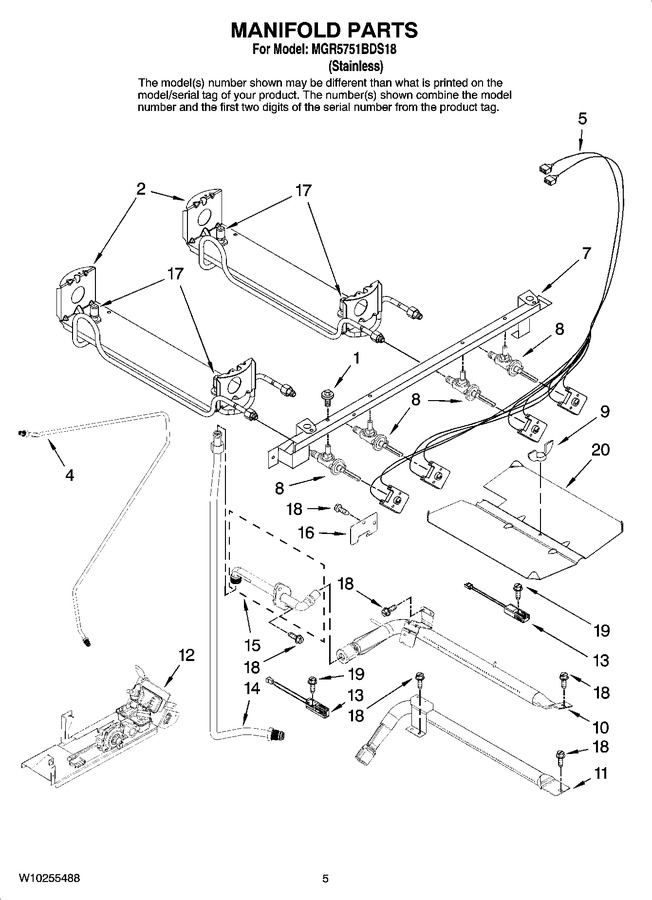

04 - Manifold Parts


05 - Door Parts


06 - Drawer And Rack Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	74009416		Screw, Valve		Appelez-nous	-
2	WP5787D105-60		Holder, Orifice Assembly (l.side)   (Replaces: 74010793)				$ 128.90
2	74010794		Holder, Orifice Assembly (r.side)		Appelez-nous	-
4	74009766		Tubing, Main Supply		Appelez-nous	-
5	W10180489		Harness, Igniter Includes Switches				$ 131.80
7	74010271		Pipe, Manifold		Appelez-nous	-
8	74009462		Valve (lf,rr,lr)		Appelez-nous	-
8	74009770		Valve (rf)		Appelez-nous	-
9	7103P030-60		Nut   (Replaces: 790431)				$ 6.37
10	74004076		Burner, Broiler		Appelez-nous	-
11	74003960		Burner, Bake				$ 90.29
12	74007780		Valve/regulator		Appelez-nous	-
13	74007498		Igniter (bake)			Immediately	$ 78.40
14	74006430		Tubing (broiler Fitting To Valve)				$ 31.98
15	74009765		Fitting, Broiler		Appelez-nous	-
16	4005F421-45		Cover,igniter		Appelez-nous	-
17	74010720		Orifice, Burner (right Rear)		Appelez-nous	-
17	74010719		Orifice, Burner (left Rear)		Appelez-nous	-
17	74010724		Orifice, Burner (right Front)		Appelez-nous	-
17	74010723		Orifice, Burner (left Front)				$ 26.05
18	W11233072		Screw   (Replaces: 74001530)			Immediately	$ 12.62
19	WP4159193		Screw   (Replaces: 7101P282-60)				$ 4.29
20	W10163813		Baffle, Broil Burner		Appelez-nous	-
NI	WP7509P129-60		Spuds, Lp Gas (kit Of 5)   (Replaces: 74009911)				$ 76.58

    View Diagram in Separate Window       Print Part List
