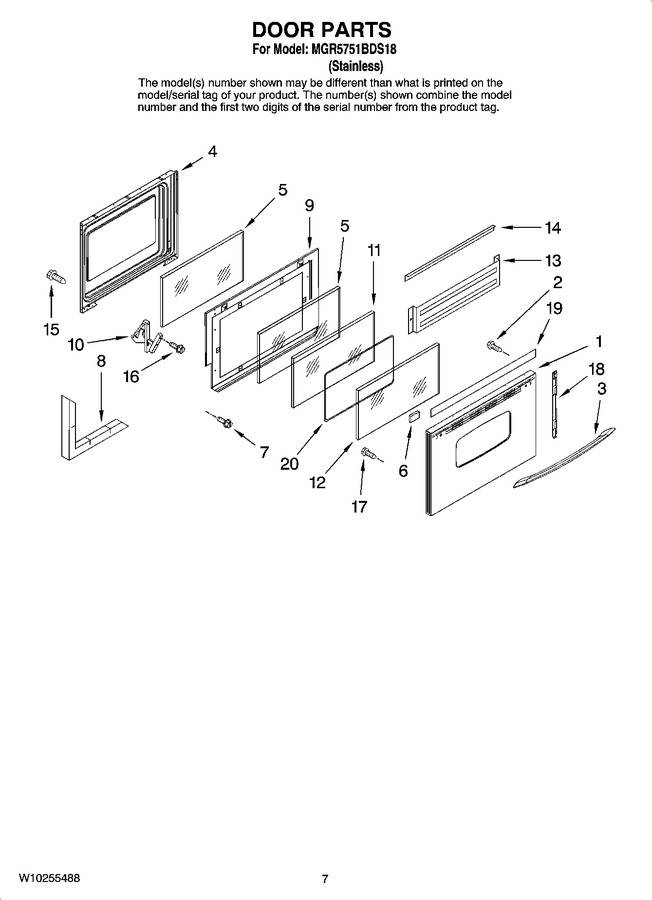

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	74009703		Panel, Door (stainless)		Appelez-nous	-
2	W11233072		Screw   (Replaces: 74001530)			Immediately	$ 12.62
3	74011777		Handle, Door (black)				$ 210.30
4	74004972		Liner, Door		Appelez-nous	-
5	74003320		Glass, Inner (2)				$ 86.35
6	WP74004224		Tape, White   (Replaces: 74004224)				$ 10.53
7	W11233072		Screw   (Replaces: 74001530)			Immediately	$ 12.62
8	74001842		Insulation, Door		Appelez-nous	-
9	74009528		Retainer,baffle Insulation		Appelez-nous	-
10	WP74011141		Hinge, Door   (Replaces: 74011141)			Immediately	$ 128.06
11	74002002		Glass, Inner				$ 62.17
12	74010021		Glass, Oven Door (stainless)		Appelez-nous	-
13	74005458		Baffle, Secndry		Appelez-nous	-
14	74004902		Baffle, Aux.		Appelez-nous	-
15	W11233072		Screw   (Replaces: 74001530)			Immediately	$ 12.62
16	WP4159193		Screw   (Replaces: 7101P282-60)				$ 4.29
17	WP74001574		Nut, Snap   (Replaces: 74001574)			Immediately	$ 9.91
18	74003048		Retainer, Glass		Appelez-nous	-
18	WP74005546		Spacer, Rubber   (Replaces: 74005546)				$ 9.48
18	7101P208-60		Screw				$ 11.92
19	8270P090-60		Tape, Foil (3``)		Appelez-nous	-
20	7201P017-60		Gasket, Window				$ 52.69
