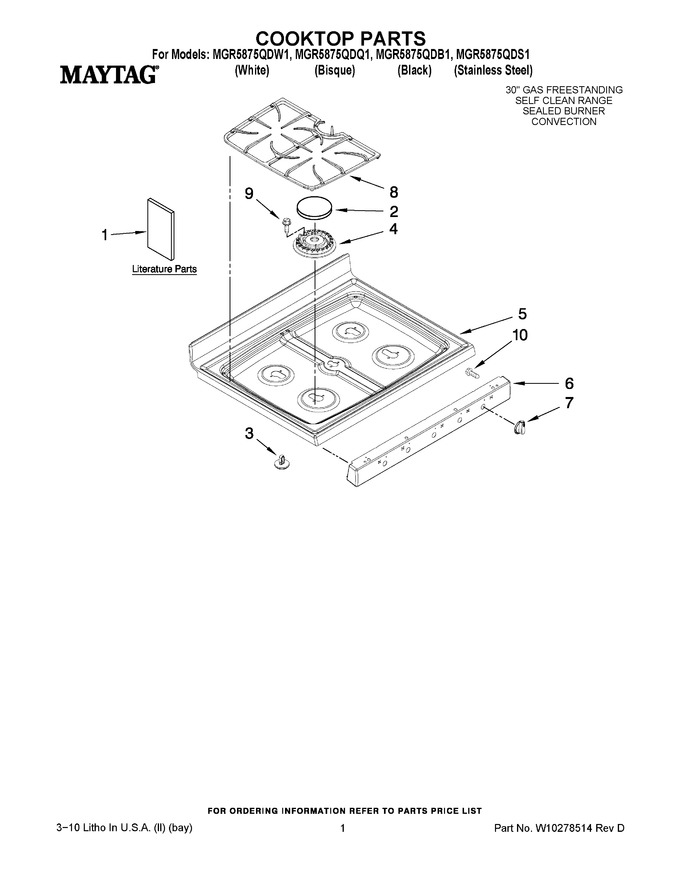

01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Manifold Parts
05 - Door Parts
06 - Drawer And Rack Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8101P718-60 | Installation Instructions |
|
- | |||||
| 1 | 8113P736-60 | Owners Manual |
|
- | |||||
| 1 | 8119P328-60 | Wiring Diagram |
|
- | |||||
| 1 | 9762761 | Tips, Safe Cooking |
|
- | |||||
| 2 | WP74007421 | Cap, Burner (rf) (gray) (Replaces: 7504P140-60) |
|
$ 81.71 | |||||
| 2 | 7504P138-60 | Cap, Burner (rr & Lr) (black) |
|
- | |||||
| 2 | WP74007420 | Cap, Burner (rr & Lr) (gray) (Replaces: 7504P141-60) |
|
$ 112.29 | |||||
| 2 | WP74007417 | Cap, Burner (rr & Lr) (taupe) (Replaces: 7504P144-60) |
|
$ 121.73 | |||||
| 2 | WP74007925 | Taupe (lf) (black) (Replaces: 7504P219-60) |
|
$ 86.81 | |||||
| 2 | WP74007752 | Taupe (lf) (grey) (Replaces: 7504P205-60) |
|
$ 98.17 | |||||
| 2 | 7504P206-60 | Taupe (lf) (taupe) |
|
- | |||||
| 2 | WP74007415 | Cap, Burner (rf) (black) (Replaces: 7504P137-60) |
|
$ 87.35 | |||||
| 2 | 7504P143-60 | Cap, Burner (rf) (taupe) |
|
- | |||||
| 2 | WP3191898 | Cap, Burner Center (black) (Replaces: 7504P136-60) |
|
$ 60.86 | |||||
| 2 | 7504P139-60 | Cap, Burner (center) (gary) |
|
- | |||||
| 2 | WP74007419 | Cap, Burner Center (taupe) (Replaces: 7504P142-60) |
|
$ 66.47 | |||||
| 3 | 74008761 | Spacer, Snap-in (Replaces: 8010P149-60) |
|
$ 7.55 | |||||
| 4 | WPW10406243 | Burner (center) (Replaces: 8286181) |
|
Immediately | $ 33.50 | ||||
| 4 | WPW10406283 | Burner (rr & Lr) (Replaces: 7540P043-60) |
|
$ 66.87 | |||||
| 4 | WPW10406797 | Burner (lf) (Replaces: 8286182) |
|
$ 79.64 | |||||
| 4 | WPW10406878 | Burner ((rf)) (Replaces: 8286183) |
|
Immediately | $ 92.12 | ||||
| 5 | 2001F287-81 | Cooktop (white) |
|
- | |||||
| 5 | 2001F287-88 | Cooktop (bisque) |
|
- | |||||
| 5 | 2001F287-09 | Cooktop (black) |
|
- | |||||
| 6 | 2616N381-81 | Panel, Manifold (white) |
|
$ 17.40 | |||||
| 6 | 3616N381-88 | Panel, Manifold (bisque) |
|
- | |||||
| 6 | 2616N381-09 | Panel, Manifold (black) |
|
$ 63.35 | |||||
| 7 | 7733P417-60 | Knob, Control (4) (white) |
|
- | |||||
| 7 | 7733P418-60 | Knob, Control (4) (bisque) |
|
$ 24.51 | |||||
| 7 | 7733P416-60 | Knob, Control (4) (black) |
|
$ 19.41 | |||||
| 8 | 7518P189-60 | Grate, Burner (2) (gray) |
|
- | |||||
| 8 | 7518P187-60 | Grate, Burner (2) (black) |
|
- | |||||
| 8 | 7518P188-60 | Grate, Burner (2) (taupe) |
|
- | |||||
| 9 | WP3368921 | Screw (8) (Replaces: 7101P685-60) |
|
Immediately | $ 6.42 | ||||
| 10 | W11233072 | Screw (Replaces: 7101P388-60) |
|
Immediately | $ 12.62 |
