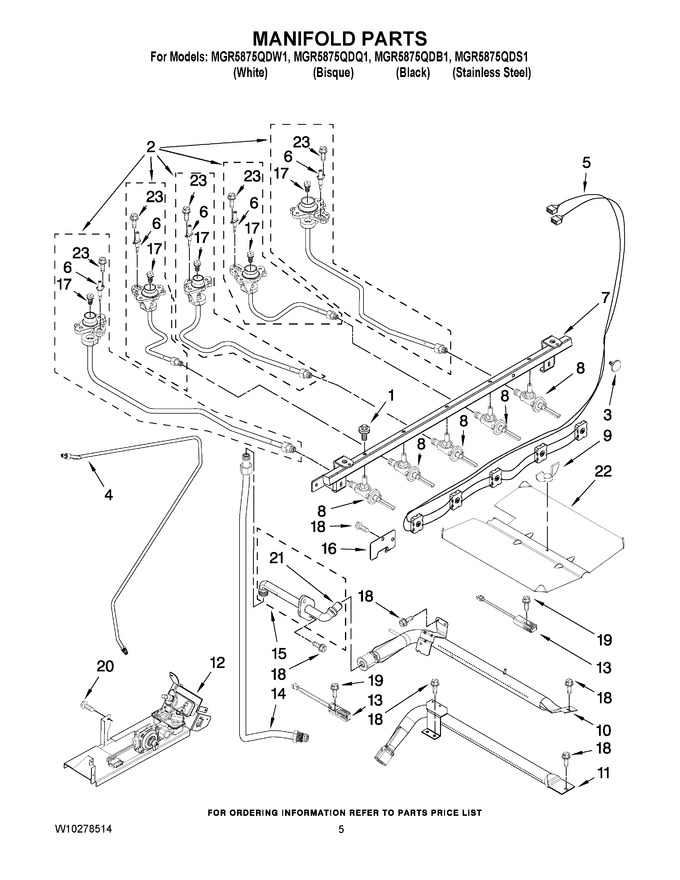

04 - Manifold Parts
05 - Door Parts
06 - Drawer And Rack Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP74006515 | Screw, Valve (Replaces: 7101P681-60) |
|
$ 7.29 | |||||
| 2 | 7527P101-60 | Holder, Orifice (lf) |
|
- | |||||
| 2 | 7527P097-60 | Holder, Orifice (center) |
|
$ 131.36 | |||||
| 2 | 7527P125-60 | Holder, Orifice (lr) |
|
$ 72.52 | |||||
| 2 | W10154209 | Holder, Orifice (rr) (Replaces: 7527P124-60) |
|
$ 140.40 | |||||
| 2 | 7527P095-60 | Holder, Orifice (rf) |
|
- | |||||
| 3 | 74008761 | Spacer, Snap-in (Replaces: 8010P149-60) |
|
$ 7.55 | |||||
| 4 | 7506P361-60 | Tubing, Main Supply |
|
- | |||||
| 5 | WP74010753 | Harness, Igniter Includes Switches (Replaces: 7403P983-60) |
|
$ 213.33 | |||||
| 6 | WP74009958 | Ignitor, Top Burner (5) (Replaces: 82000311) |
|
Immediately | $ 28.85 | ||||
| 7 | 7513P524-60 | Pipe, Manifold |
|
- | |||||
| 8 | 74010751 | Valve ((rf)) (Replaces: 7502P501-60) |
|
$ 242.95 | |||||
| 8 | 7502P500-60 | Valve ((lr/lf/rr)) |
|
$ 118.46 | |||||
| 8 | WP7502P499-60 | Valve (center) (Replaces: 7502P499-60) |
|
$ 234.74 | |||||
| 9 | 7103P030-60 | Nut |
|
$ 6.37 | |||||
| 10 | W10160904 | Burner, Broiler |
|
$ 180.47 | |||||
| 11 | 7505P331-60 | Burner, Bake |
|
- | |||||
| 12 | 7501P233-60 | Valve/regulator |
|
- | |||||
| 13 | 74007498 | Igniter (broil) (Replaces: 7432P106-60) |
|
Immediately | $ 78.40 | ||||
| 13 | WP7432P136-60 | Igniter (bake) (Replaces: 7432P136-60) |
|
Immediately | $ 84.62 | ||||
| 14 | 74008830 | Tubing (broiler Fitting To Valve) (Replaces: 7506P368-60) |
|
$ 74.95 | |||||
| 15 | 74008818 | Fitting, Broiler (Replaces: 7507P357-60) |
|
$ 73.73 | |||||
| 16 | 4005F421-45 | Cover,igniter |
|
- | |||||
| 17 | W10156136 | Orifice, Burner (lr/rr) (Replaces: 7509P122-60) |
|
$ 86.28 | |||||
| 17 | 7509P120-60 | Orifice, Burner (center) |
|
- | |||||
| 17 | W10156836 | Orifice, Burner (right Front) (Replaces: 7509P124-60) |
|
$ 90.07 | |||||
| 17 | 7509P123-60 | Orifice, Burner (left Front) |
|
$ 86.44 | |||||
| 18 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 12.62 | ||||
| 19 | W11684507 | Screw (Replaces: 3196385) |
|
$ 12.23 | |||||
| 20 | WP4159193 | Screw (Replaces: 7101P027-60) |
|
$ 4.29 | |||||
| 21 | 74008834 | Orifice (Replaces: 7507P366-60) |
|
$ 46.76 | |||||
| 22 | 3601P336-45 | Baffle, Broil Burner |
|
$ 194.65 | |||||
| 23 | WP8273062 | Screw (Replaces: 8273062) |
|
Immediately | $ 7.12 | ||||
| NI | 7509P115-60 | Spuds, Lp Gas (kit Of 5) |
|
- |
