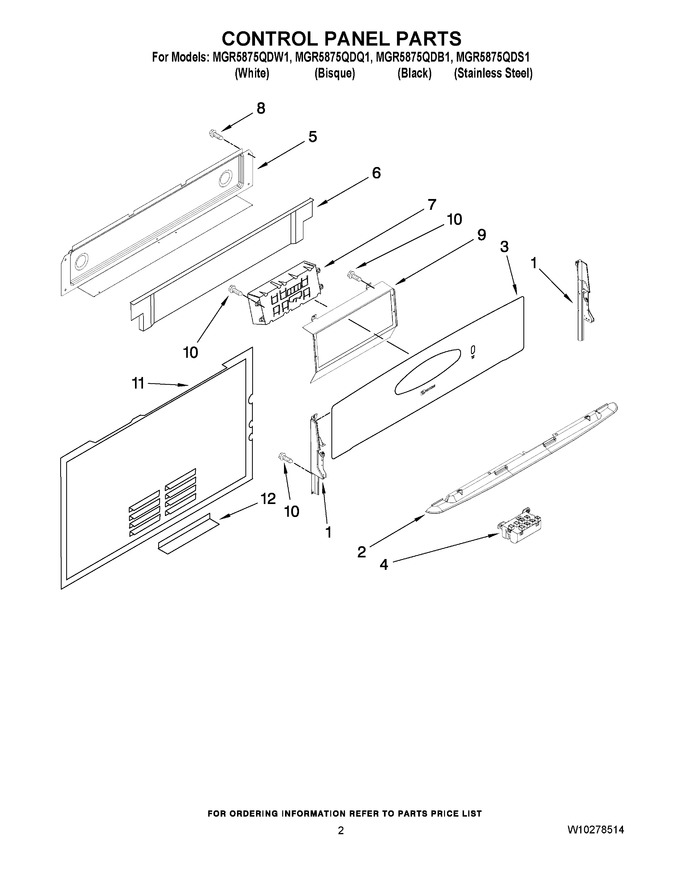

02 - Control Panel Parts
03 - Chassis Parts
04 - Manifold Parts
05 - Door Parts
06 - Drawer And Rack Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3807F703-70 | Endcap, Left Hand (black) |
|
- | |||||
| 1 | 3807F703-71 | Endcap, Left Hand (white) |
|
- | |||||
| 1 | 3807F703-78 | Endcap, Left Hand (bisque) |
|
- | |||||
| 1 | 3807F702-70 | Endcap, Right Hand (black) |
|
- | |||||
| 1 | 3807F702-71 | Endcap, Right Hand (white) |
|
- | |||||
| 1 | 3807F702-78 | Endcap, Right Hand (bisque) |
|
$ 40.46 | |||||
| 2 | 3604F382-09 | Heat Shield, Visor (black) |
|
$ 50.83 | |||||
| 2 | 3604F382-81 | Heat Shield, Visor (white) |
|
$ 32.49 | |||||
| 2 | 3604F382-88 | Heat Shield, Visor (bisque) |
|
$ 40.19 | |||||
| 3 | 2601N981-09 | Panel, Control (black) |
|
- | |||||
| 3 | 2601N981-81 | Panel, Control (white) |
|
- | |||||
| 3 | 2601N981-88 | Panel, Control (bisque) |
|
- | |||||
| 4 | 74009098 | Module, Spark (Replaces: 7431P053-60) |
|
$ 305.10 | |||||
| 5 | 4005F803-51 | Cover, Upper |
|
$ 19.75 | |||||
| 6 | 3604F381-19 | Shield, Vent |
|
$ 31.31 | |||||
| 7 | 5701M642-60 | Control (includes Overlay) (black) |
|
- | |||||
| 7 | 5701M640-60 | Control (includes Overlay) (white) |
|
$ 388.54 | |||||
| 7 | 5701M641-60 | Control (includes Overlay) (bisque) |
|
- | |||||
| 8 | WP74010226 | Switch, Rocker (Replaces: 7403P757-60) |
|
$ 86.45 | |||||
| 9 | 3801F844-51 | Bracket, Control |
|
$ 34.28 | |||||
| 10 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 12.62 | ||||
| 11 | 4005F748-51 | Cover, Main Wire |
|
- | |||||
| 12 | 3604P372-51 | Extension, Shield |
|
- |
