SELECT A DIAGRAM

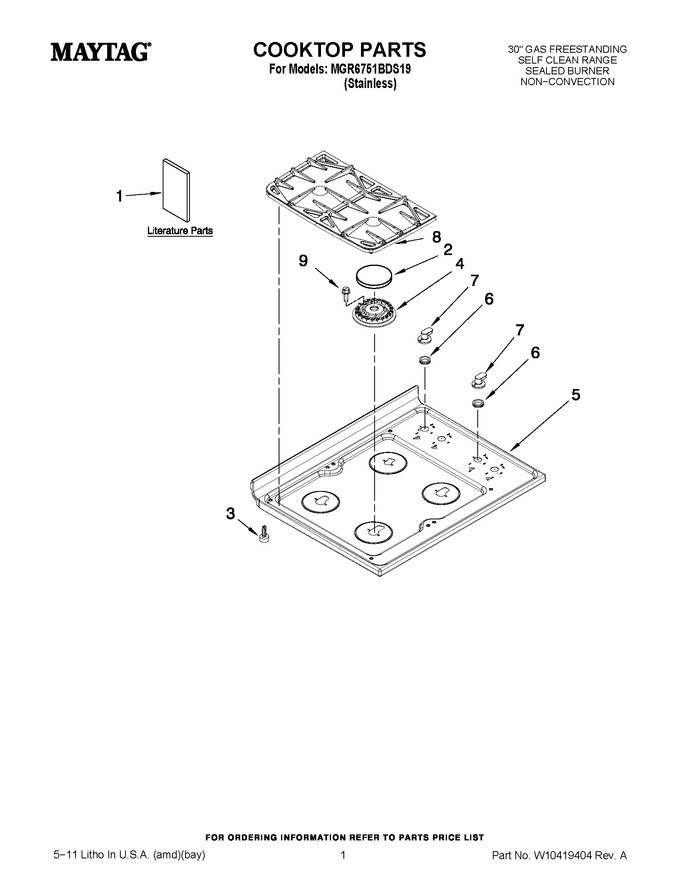

01 - Cooktop Parts


02 - Control Panel Parts


03 - Manifold Parts


04 - Chassis Parts


05 - Upper Door Parts


06 - Lower Door Parts


07 - Rack Parts


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8119P218-60		Diagram, Wiring		Appelez-nous	-
1	8113P739-60		Owners Manual		Appelez-nous	-
1	8101P623-60		Installation Instructions		Appelez-nous	-
2	WPW10169984		Cap, Burner (9k)   (Replaces: W10169984)				$ 61.50
2	WPW10169983		Cap, Burner (17k)   (Replaces: W10169983)				$ 84.75
2	W10173833		Cap, Burner (12k)		Appelez-nous	-
2	WPW10169985		Cap, Burner (6k)   (Replaces: W10169985)				$ 57.13
3	W11189172		Glide, Main Top   (Replaces: 8016P022-60)			Immediately	$ 15.09
4	WPW10406878		Burner (lf)   (Replaces: 8286183)			Immediately	$ 92.12
4	WPW10406283		Burner (lr/rr/rf)   (Replaces: W10194076)				$ 66.87
5	W10292721		Cooktop		Appelez-nous	-
6	8285469		Grommet, Knob				$ 45.00
7	7733P423-60		Knob, Control		Appelez-nous	-
8	7518P321-60		Grate, Burner (incl. Bumpers)		Appelez-nous	-
9	WP3368921		Screw   (Replaces: 3368921)			Immediately	$ 6.42

    View Diagram in Separate Window       Print Part List
