SELECT A DIAGRAM

01 - Cooktop Parts


02 - Control Panel Parts


03 - Manifold Parts


04 - Chassis Parts

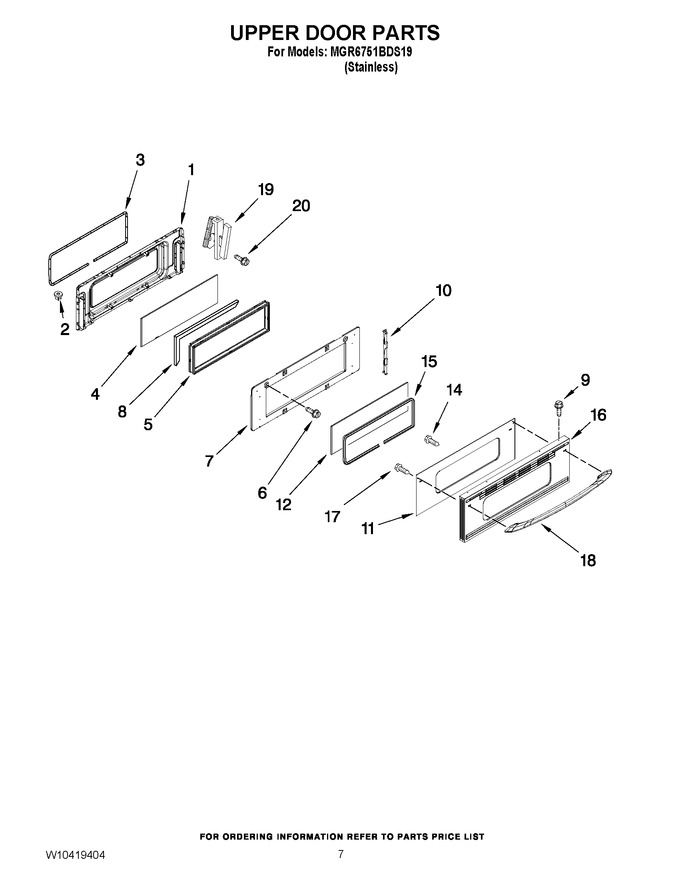

05 - Upper Door Parts


06 - Lower Door Parts


07 - Rack Parts


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2402W248-19		Lining, Door		Appelez-nous	-
2	WP74001574		Nut, Snap   (Replaces: 7103P141-60)			Immediately	$ 9.91
3	WP7201P091-60		Gasket, Door   (Replaces: 7201P091-60)				$ 137.97
4	7902P521-60		Glass, Inner		Appelez-nous	-
5	7907P034-60		Frame, Glass		Appelez-nous	-
6	W11233072		Screw   (Replaces: 7101P388-60)			Immediately	$ 12.62
7	3601F354-45		Baffle, Door				$ 66.15
8	7002P488-60		Insulation, Door		Appelez-nous	-
9	WP98008545		Screw   (Replaces: 7101P633-60)				$ 15.94
10	3804F184-45		Retainer, Glass		Appelez-nous	-
11	7902P755-60		Kit, Door Glass (incl. Foil Tape)		Appelez-nous	-
12	7902P542-60		Glass, Inner		Appelez-nous	-
14	W11347848		Screw   (Replaces: 7101P376-60)				$ 12.20
15	7201P138-60		Gasket, Window		Appelez-nous	-
16	7760P153-60		Panel, Door		Appelez-nous	-
17	7101P675-60		Screw, Handle		Appelez-nous	-
18	7701P526-60		Handle, Door				$ 129.23
19	7106P148-60		Hinge, Door		Appelez-nous	-
20	WP4159193		Screw   (Replaces: 7101P282-60)				$ 4.29

    View Diagram in Separate Window       Print Part List
