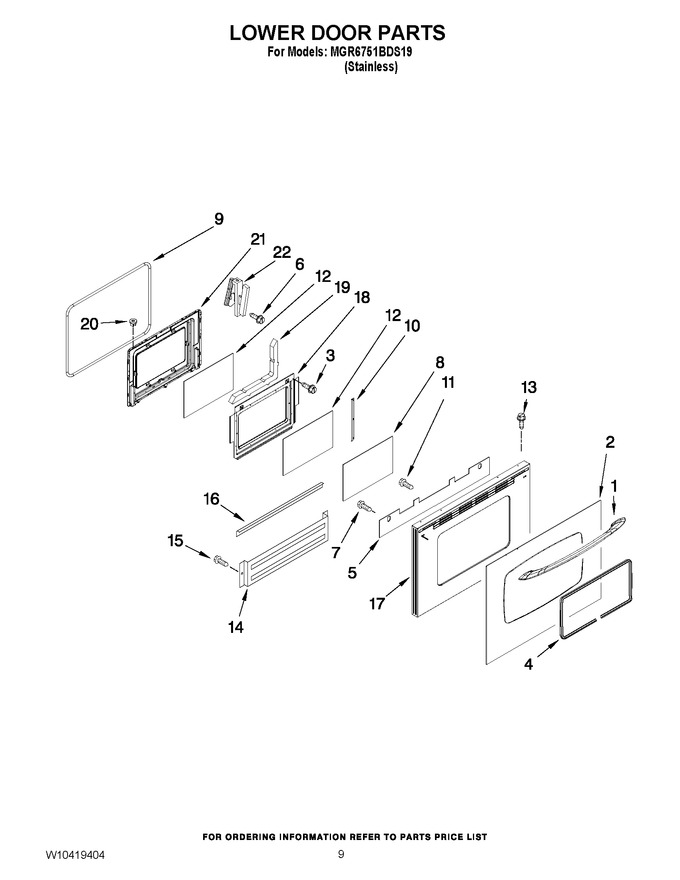

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	7701P526-60		Handle, Door				$ 129.23
2	7902P767-60		Kit, Door Glass		Appelez-nous	-
3	W11233072		Screw   (Replaces: 7101P388-60)			Immediately	$ 12.62
4	7201P138-60		Gasket, Window		Appelez-nous	-
5	7002P435-60		Insulation, Foil		Appelez-nous	-
6	WP4159193		Screw   (Replaces: 7101P282-60)				$ 4.29
7	7101P675-60		Screw, Handle		Appelez-nous	-
8	7902P377-60		Glass, Inner		Appelez-nous	-
9	WPW10162384		Gasket, Door   (Replaces: W10162384)			Immediately	$ 77.61
10	3804F140-80		Retainer, Glass		Appelez-nous	-
11	W11347848		Screw   (Replaces: 7101P376-60)				$ 12.20
12	7902P472-60		Glass, Inner		Appelez-nous	-
13	WP98008545		Screw   (Replaces: 7101P633-60)				$ 15.94
14	3601F295-51		Baffle, Door		Appelez-nous	-
15	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.04
16	3601F324-51		Baffle, Auxiliary		Appelez-nous	-
17	7760P145-60		Panel, Door		Appelez-nous	-
18	3601F353-45		Baffle, Door				$ 128.19
19	7002P221-60		Insulation, Door		Appelez-nous	-
20	WP74001574		Nut, Snap   (Replaces: 7103P141-60)			Immediately	$ 9.91
21	2402W271-19		Lining, Door				$ 140.85
22	74011142		Hinge, Door   (Replaces: 7106P141-60)			Immediately	$ 108.22
