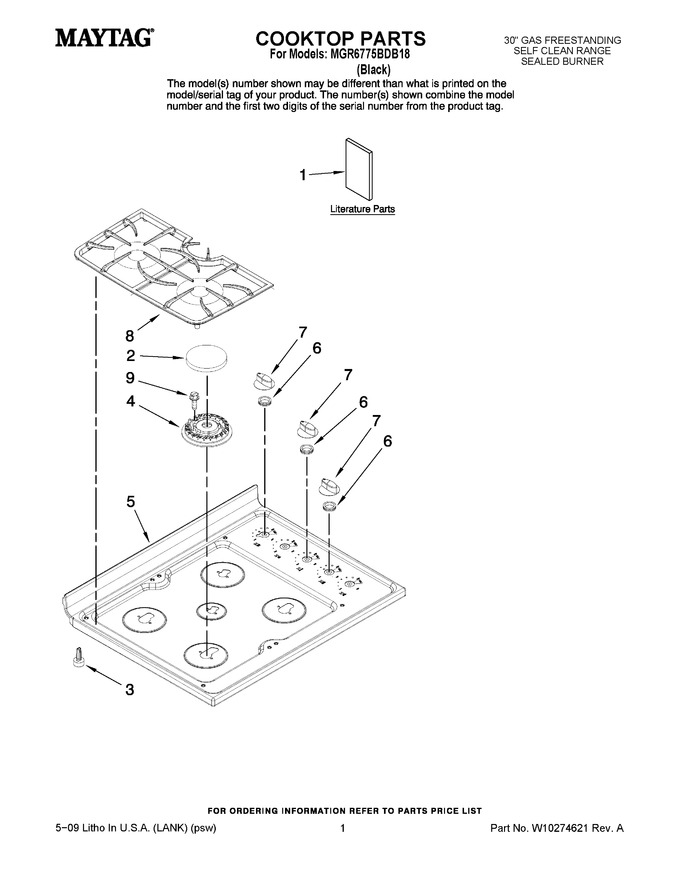

01 - Cooktop Parts


02 - Control Panel Parts


03 - Manifold Parts


04 - Chassis Parts


05 - Upper Door Parts


06 - Lower Door Parts


07 - Rack Parts


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8119P393-60		Diagram, Wiring		Appelez-nous	-
1	8101P623-60		Installation Instructions		Appelez-nous	-
1	8113P707-60		Owners Manual		Appelez-nous	-
1	9762761		Brochure Tips (safe Cooking) (english)		Appelez-nous	-
1	W10065852		Brochure, Tips Safe Cooking (french)		Appelez-nous	-
2	W10173833		Cap, Burner (rf (1))		Appelez-nous	-
2	WPW10169983		Cap, Burner (lf (1))   (Replaces: W10169983)				$ 84.75
2	WPW10169984		Cap, Burner (lr/rr (2))   (Replaces: W10169984)				$ 61.50
2	WPW10169985		Cap, Burner (center (1))   (Replaces: W10169985)				$ 57.13
3	W11189172		Glide, Main Top   (Replaces: 8016P022-60)			Immediately	$ 15.09
4	WPW10406243		Burner (center 5k (1))   (Replaces: 8286181)			Immediately	$ 33.50
4	WPW10406283		Burner (lr/rr 9.2k (2))   (Replaces: 7540P043-60)				$ 66.87
4	WPW10406878		Burner (left Front 16k (1))   (Replaces: 8286183)			Immediately	$ 92.12
4	WPW10406797		Burner (right Front 12k(1))   (Replaces: 8286182)				$ 79.64
5	2001N219-09		Cooktop		Appelez-nous	-
6	8285469		Grommet, Knob (5)				$ 45.00
7	7733P423-60		Knob, Control (5)		Appelez-nous	-
8	7518F287-60		Grate, Burner (2) (includes Bumpers)		Appelez-nous	-
9	WP3368921		Screw (8)   (Replaces: 7101P685-60)			Immediately	$ 6.42
