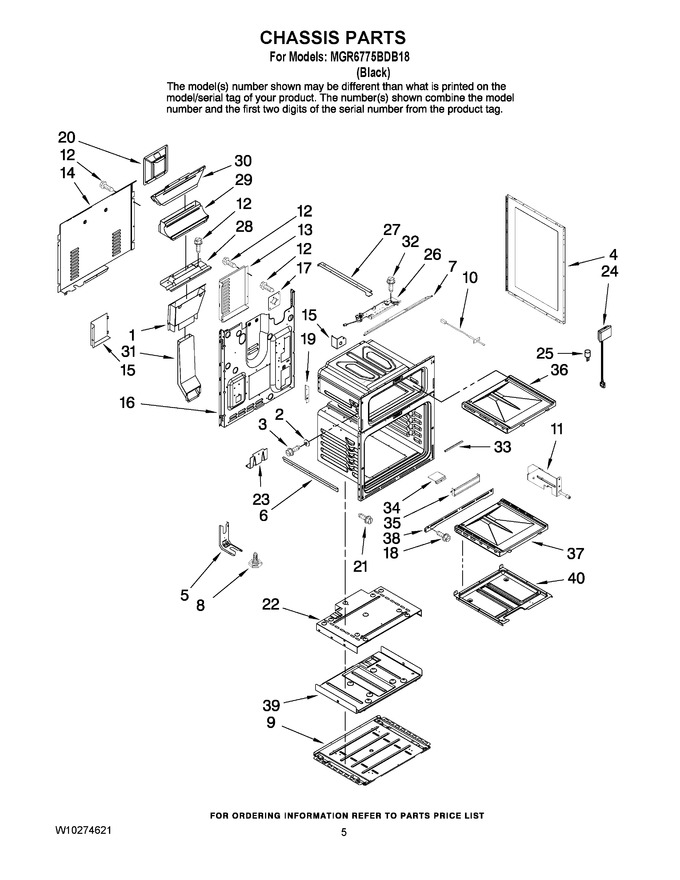

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3826W047-45		Extension, Lower Vent		Appelez-nous	-
2	W10857933		Spacer, Side Panel   (Replaces: 8004P024-60)				$ 7.07
3	7101P618-60		Screw, Shoulder		Appelez-nous	-
4	2618F194-70		Panel, Side				$ 65.57
5	WP3801F656-51		Bracket, Anti-tip   (Replaces: 3801F656-51)			Immediately	$ 4.69
6	3823F015-51		Spacer, Side Panel (long)				$ 10.70
7	3801F924-80		Bracket, Cooktop		Appelez-nous	-
8	W11665456		Foot, Leveler (4)   (Replaces: 7101P507-60)			Immediately	$ 25.30
9	W10312768		Base, Gemini   (Replaces: 4003F070-51)		Appelez-nous	-
10	WP74011433		Sensor, Oven (upper Oven)   (Replaces: 7430P045-60)				$ 216.97
10	12001655		Sensor, Oven Lower Oven   (Replaces: 7430P041-60)			Immediately	$ 41.01
11	WP7450P108-60		Switch, Light-assy   (Replaces: 7450P108-60)			Immediately	$ 138.24
12	W11233072		Screw   (Replaces: 7101P388-60)			Immediately	$ 12.62
13	4005F743-51		Cover, Bottom Wire				$ 13.91
14	4005F655-51		Cover, Upper Wire		Appelez-nous	-
15	3801F705-51		Bracket (right)				$ 8.51
15	3801F706-51		Bracket (left)				$ 7.68
16	4002F341-51		Back, Main		Appelez-nous	-
17	3807F647-45		Plate, Broil Fitting		Appelez-nous	-
18	WP98008545		Screw (2)   (Replaces: 7101P633-60)				$ 15.94
19	3807F644-45		Support, Upr Oven (left)		Appelez-nous	-
19	3807F643-45		Support, Upr Oven (right)				$ 7.82
20	3804F212-45		Retainer, Insulation		Appelez-nous	-
21	7101P385-60		Screw		Appelez-nous	-
22	4005F695-45		Cover, Bottom Insulation		Appelez-nous	-
23	3807F580-51		Support, Lwr Oven		Appelez-nous	-
24	7407P179-60		Light Assy. (2)		Appelez-nous	-
25	WP74009925		Bulb, Light (2)   (Replaces: 899138-001)			Immediately	$ 20.37
26	74007429		Latch, Door Lock   (Replaces: 8002P077-60)				$ 319.39
27	4011F525-51		Bottom, Burner Box (left)		Appelez-nous	-
27	4011F524-51		Bottom, Burner Box (right)		Appelez-nous	-
28	3601F321-50		Baffle, Vent Seal		Appelez-nous	-
29	3826W042-45		Extension, Upper Vent		Appelez-nous	-
30	4022W055-45		Flue Assy., Upper		Appelez-nous	-
31	3826W052-45		Flue Assy., Lower		Appelez-nous	-
32	74003975		Screw   (Replaces: 7101P375-60)				$ 12.02
33	7212P066-60		Seal, Front Frame		Appelez-nous	-
34	4005F736-45		Cover, Burner Opening (2)				$ 7.37
35	3601F308-19		Baffle, Lower Oven Vent		Appelez-nous	-
36	2205F055-19		Bottom, Upper Oven				$ 85.21
37	2205F051-19		Bottom, Lower Oven				$ 197.38
38	3608F088-70		Trim, Kickplate				$ 62.10
39	3804F212-47		Retainer, Bottom Insulation		Appelez-nous	-
40	74010091		Insulation, Back (lower Oven)   (Replaces: 7002P419-60)				$ 73.67
40	W10170906		Pan, Bake (lower)		Appelez-nous	-
40	W10172248		Pan, Bake (upper)				$ 130.00
40	74007440		Insulation, Wrap (upper Oven)   (Replaces: 7002P310-60)				$ 130.93
40	7002P413-60		Insulation, Wrap (lower Oven)		Appelez-nous	-
40	7002P415-60		Insulation, Back (upper Oven)		Appelez-nous	-
